Inductive Sensor Turck BI10-EM30WDTC-Y1X
TURCK CATEGORIES
Inductive Sensor BI10-EM30WDTC-Y1X
Brand: Turck
Product Code: 4012071
Country of origin: DE

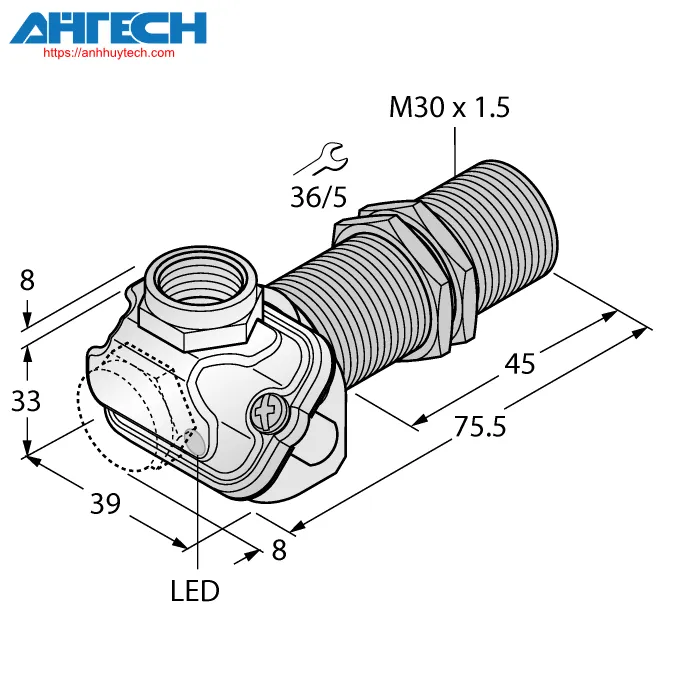

- Screwed barrel, M30 x 1.5
- Corrosion-resistant steel, 1.4404
- For a temperature range of -40 °C to +100 °C
- Superior protection rating IP69K for demanding environments
- Unique double-lip sealing solution
- Shielding from all standard acidic and alkaline cleaning agents
- Appropriate for use within the food sector
- DC two-wire, nom. 8.2 VDC
- Output in accordance with DIN EN 60947-5-6 (NAMUR)
- Connection chamber
- ATEX classification II 1 G, Ex Zone 0 for maximum temperatures of +80 °C
- ATEX category II 2 G. Ex Zone 1
- ATEX classification II 1 D, Ex Zone 20 for temperatures ranging from -25 °C to +70 °C
- SIL 2 (Low Demand Mode) in accordance with IEC 61508, PL c in accordance with ISO 13849-1 at HFT0
- SIL 3 (All Demand Mode) per IEC 61508, PL e per ISO 13849-1 with redundant configuration HTF1
Contact via Zalo
Phone call
General data
| Place of manufacture | DE |
| Weight | 151 g |
Technical Data
| Design type | Screwed barrel |
| Dimension | M30 x 1.5 |
| Rated actuation distance | 10 mm |
| Installation requirements | Flush |
| Supply voltage | Nom. 8.2 VDC |
| Output category | NAMUR |
| Switching rate | 0.50 kHz |
| Type of connection | Connection housing, detachable cage clamp terminals |
| Enclosure material | Corrosion-resistant steel, 1.4404 (AISI 316L) |
| Surrounding temperature | -40…+100 °C |
| Safety rating | IP68/IP69K |
| Certifications | ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc |
| Unique characteristics | Washdown, pressure-resistant |
Download Specification for BI10-EM30WDTC-Y1X
Download PDF
