Inductive Sensor Turck BI2-Q10S-Y1X
TURCK CATEGORIES
Inductive Sensor BI2-Q10S-Y1X
Brand: Turck
Product Code: 4012130
Country of origin: PL
- Height, rectangular 10.2 mm
- Active surface, side
- Cable outlet in all directions
- Plastic, PP-GF20
- DC two-wire, nom. 8.2 VDC
- Output in accordance with DIN EN 60947-5-6 (NAMUR)
- Cable interface
- ATEX category II 1 G, Ex zone 0
- ATEX category II 1 D, Ex zone 20
- SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 with HFT0
- SIL3 (All Demand Mode) according to IEC 61508, PL e according to ISO 13849-1 with redundant configuration HFT1
Contact via Zalo
Phone call
General data
| Place of manufacture | PL |
| Weight | 33 g |
Technical Data
| Design type | Rectangular |

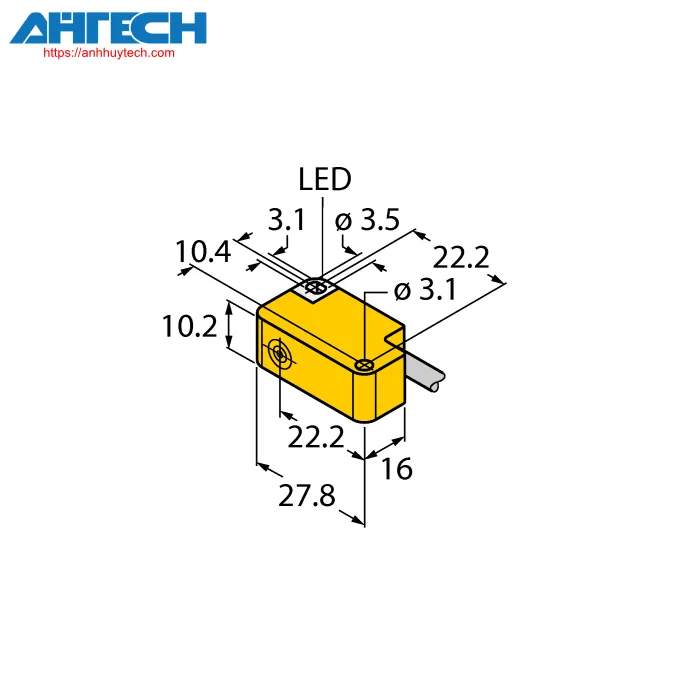

| Dimension | 27.8 x 16 x 10.2 mm, Q10S |
| Rated actuation distance | 2 mm |
| Installation requirements | Flush |
| Supply voltage | Nom. 8.2 VDC |
| Output category | NAMUR |
| Switching rate | 1.0 kHz |
| Type of connection | Cable |
| Cable duration | 2.0 m |
| Enclosure material | Plastic, PP-GF20 |
| Surrounding temperature | -25…+70 °C |
| Safety rating | IP67 |
| Certifications | ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc |
Download Specification for BI2-Q10S-Y1X
