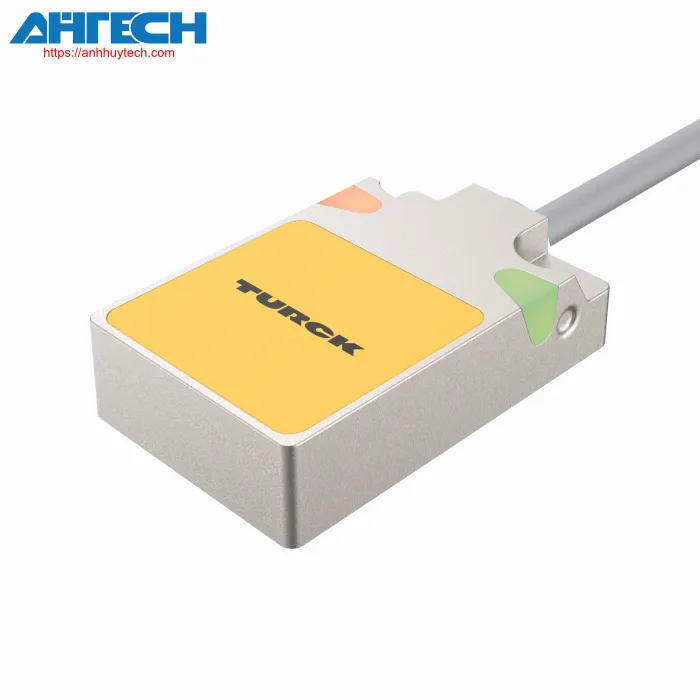

Inductive Sensor Turck BI5-Q08-Y1X
TURCK CATEGORIES
Inductive Sensor BI5-Q08-Y1X
Brand: Turck
Product Code: 4054000
Country of origin: PL
- 8 mm height, rectangular
- Top-mounted active surface
- Metal, Zamak, nickel-plated
- DC two-wire, nom. 8.2 VDC
- Output in accordance with DIN EN 60947-5-6 (NAMUR)
- Cable interface
- ATEX category II 2 G, Ex Zone 1
- ATEX category II 1 D, Ex Zone 20
- SIL 2 (Low Demand Mode) in accordance with IEC 61508, PL c in accordance with ISO 13849-1 at HFT0
- SIL 3 (All Demand Mode) in accordance with IEC 61508, PL e in accordance with ISO 13849-1 with redundant configuration HFT1
Contact via Zalo
Phone call
General data
| Place of manufacture | PL |
| Weight | 40 g |
Technical Data
| Design type | Rectangular |
| Dimension | 32 x 20 x 8 mm, Q08 |
| Rated actuation distance | 5 mm |
| Installation requirements | Flush |
| Supply voltage | Nom. 8.2 VDC |
| Output category | NAMUR |
| Switching rate | 1.0 kHz |
| Type of connection | Cable |
| Cable duration | 2.0 m |
| Enclosure material | Metal, Zamak, Nickel Plated |
| Surrounding temperature | -25…+70 °C |
| Safety rating | IP68 |
| Certifications | ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc |
Download Specification for BI5-Q08-Y1X
