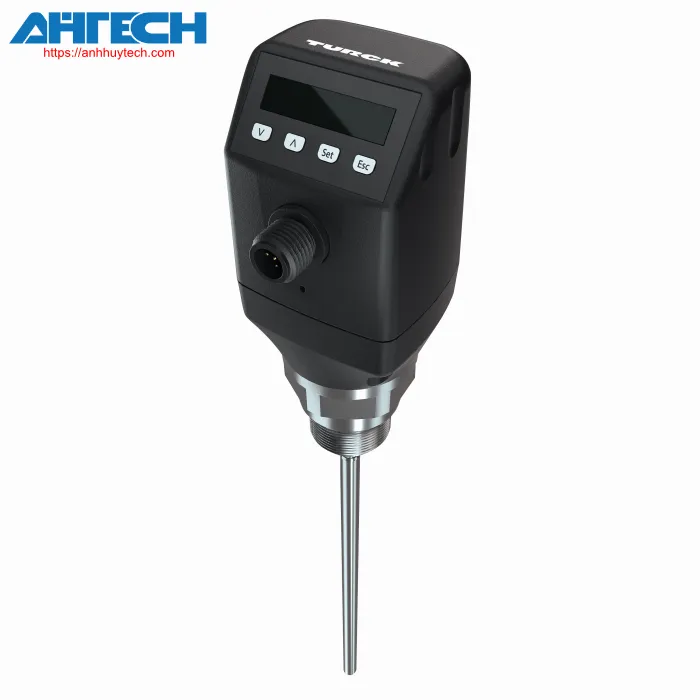

Level Sensor Turck LUS211-40-34-LI2UPN8-H1141
TURCK CATEGORIES
Level Sensor LUS211-40-34-LI2UPN8-H1141
Brand: Turck
Product Code: 100003168
Country of origin: DE
- 4-digit, dual-colored, 12-segment display, adjustable for 180° rotation
- The enclosure can be rotated following the installation of the process connection
- ¾" NPT fitting for process connection
- Obstructed area: 0.5 cm
- Range: 40 cm
- Definition of resolution: 0.5 mm
- Sonic cone aperture angle: ±15 °
- 1 × PNP/NPN output for switching
- 1 × analog output, 4…20 mA / 0…10 V / additional switching output, PNP/NPN
- NO/NC configurable
- Conveyance of process value and parameter setup through IO-link
Contact via Zalo
Phone call
General data
| Place of manufacture | DE |
| Weight | 398 g |
Technical Data
| Sensing method | contactless |
| Medium | fluids, bulk materials |
| Sensing principle | Ultrasonic |
| Process interface | 3/4? NPT |
| Max. range | 400 mm |
| Supply voltage | 18…33 VDC |
| Output category | NO/NC, PNP/NPN, analog signal output |
| Voltage output | 0…10 V |
| Output of current | 4…20 mA |
| Communication standard | IO-Link |
| Type of connection | Connector, M12 × 1 |
| Enclosure material | Corrosion-resistant steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV PA |
| Pressure resistance | 0.5…5 bar |
| Surrounding temperature | -25…+70 °C |
| Safety rating | IP67/IP69K |
| Certifications | CE, cULus |
Download Specification for LUS211-40-34-LI2UPN8-H1141
