Pressure Sensor Turck PT5000PSIG-2004-I2-H1141/X
TURCK CATEGORIES

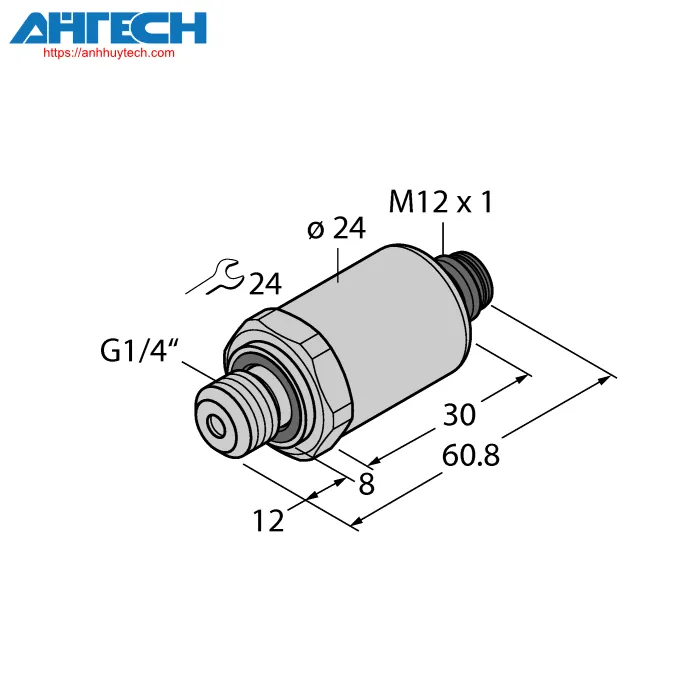

Pressure Sensor PT5000PSIG-2004-I2-H1141/X
Brand: Turck
Product Code: 100000715
Country of origin: CH
- Completely welded metallic measurement cell
- Pressure range 0…5000 psi rel.
- Pressure peak aperture
- 7…33 VDC
- Analog output signal 4…20 mA
- Process interface G1/4" male thread (back sealing) compliant with DIN EN ISO 1179-2 featuring an FPM profile sealing ring
- Connection device, M12 × 1
Contact via Zalo
Phone call
General data
| Place of manufacture | CH |
| Weight | 90 g |
Technical Data
| Design type | Lacking a display |
| Process interface | G1/4” male thread (back sealing) compliant with DIN EN ISO 1179-2 featuring an FPM profile sealing ring |
| Pressure classification | Gauge pressure |
| Pressure range bar | 0…344.74 bar |
| Pressure range psi | 0…5000 psi |
| Supply voltage | 7…33 VDC |
| Electrical yield | Output in its current state (2-wire) |
| Output of current | 4…20 mA |
| Type of connection | Connector, M12 × 1 |
| Enclosure material | Corrosion-resistant steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50% GF UL 94 V-0 |
| Pressure sensor construction material | Corrosion-resistant steel 1.4435 (AISI 316L) |
| intermediate temperature | -40…+135 °C |
| Surrounding temperature | -30…+85 °C |
| Safety rating | IP67 |
| Certifications | CE, Metrological validation (RUS), cULus |
Download Specification for PT5000PSIG-2004-I2-H1141/X
