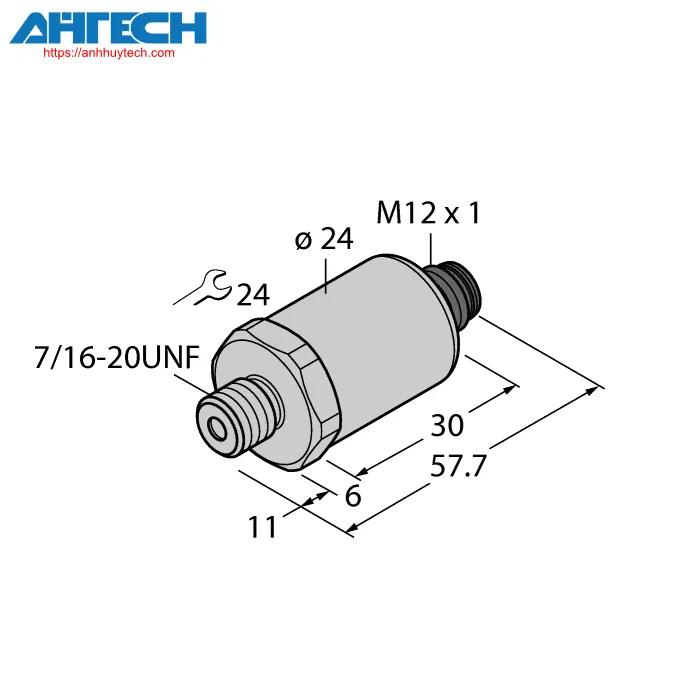

Pressure Sensor Turck PT500PSIG-2005-IX-H1143/X
TURCK CATEGORIES
Pressure Sensor PT500PSIG-2005-IX-H1143/X
Brand: Turck
Product Code: 100022576
Country of origin: CH
- Completely welded metallic measurement cell
- Pressure range 0…500 psi rel.
- Pressure peak aperture
- 10…30 VDC
- Analog output signal 4…20 mA
- Process interface 7/16" UNF (SAE) external thread
- Connection device, M12 × 1
- ATEX, IECEx
- Category II 1/2 GD, Ex area 0
Contact via Zalo
Phone call
General data
| Place of manufacture | CH |
| Weight | 90 g |
Technical Data
| Design type | Lacking a display |
| Process interface | 7/16"-20 UNF (Schrader) external thread |
| Pressure classification | Gauge pressure |
| Pressure range bar | 0…34.47 bar |
| Pressure range psi | 0…500 psi |
| Supply voltage | 10…30 VDC |
| Electrical yield | Output in its current state (2-wire) |
| Output of current | 4…20 mA |
| Type of connection | Connector, M12 × 1 |
| Enclosure material | Corrosion-resistant steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50% GF UL 94 V-0 |
| Pressure sensor construction material | Corrosion-resistant steel 1.4016 (AISI 430) |
| intermediate temperature | -30…+120 °C |
| Surrounding temperature | -25…+85 °C |
| Safety rating | IP67 |
| Certifications | ATEX II 1/2 GD, CE, IECEx II 1/2 GD, UKEX, GOST/EAC RU, Metrological certification (RUS), cULus |
Download Specification for PT500PSIG-2005-IX-H1143/X
