Pressure Sensor Turck PT5PSIV-1503-IX-H1143/D840
TURCK CATEGORIES

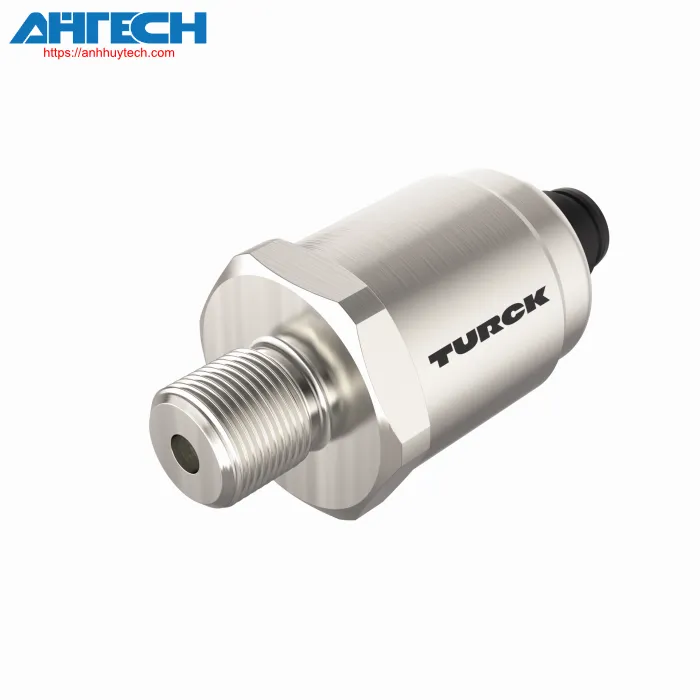

Pressure Sensor PT5PSIV-1503-IX-H1143/D840
Brand: Turck
Product Code: 100032416
Country of origin: CH
- Ceramic sensor element
- Exceptional measurement precision
- Compact and sturdy design
- Outstanding thermal performance
- Pressure range -5…5 psi rel
- 10…30 VDC
- Analog output signal 4…20 mA
- Process interface 1/4"-18 NPT external thread
- Connection device, M12 × 1
- ATEX, IECEx
- Category II 1/2 GD, Ex area 0
Contact via Zalo
Phone call
General data
| Place of manufacture | CH |
| Weight | 88 g |
Technical Data
| Design type | Lacking a display |
| Process interface | 1/4" NPT-18 male thread |
| Pressure classification | Gauge pressure |
| Pressure range bar | -0.345…0.34 bar |
| Pressure range psi | -5…5 psi |
| Supply voltage | 10…30 VDC |
| Electrical yield | Output in its current state (2-wire) |
| Output of current | 4…20 mA |
| Type of connection | Connector, M12 × 1 |
| Enclosure material | Corrosion-resistant steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50% GF UL 94 V-0 |
| Pressure sensor construction material | Ceramic Al2O3 |
| intermediate temperature | -15…+85 °C |
| Surrounding temperature | -25…+85 °C |
| Safety rating | IP67 |
| Certifications | ATEX II 1/2 GD, IECEx II 1/2 GD |
Download Specification for PT5PSIV-1503-IX-H1143/D840
