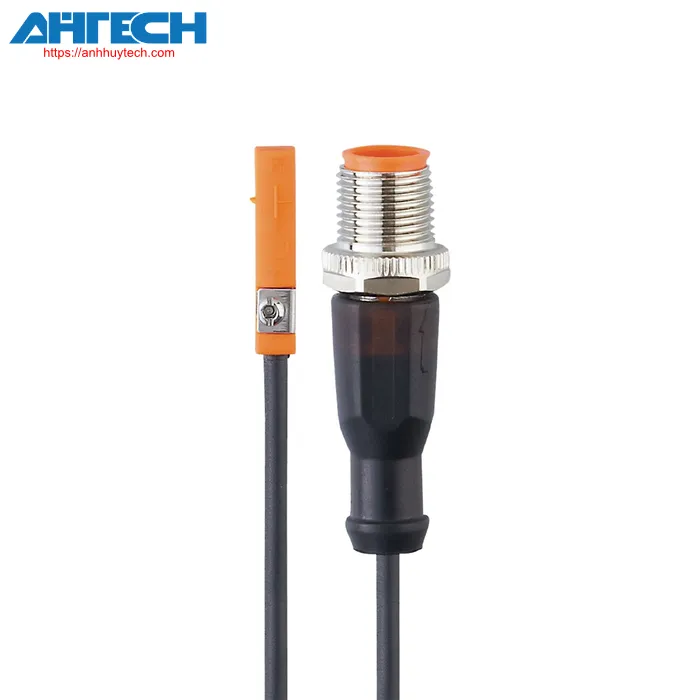

Cylinder Sensor Ifm MK500A

IFM CATEGORIES

Brand: Ifm
Product Code: MKT3028BBPKG/G/ZH/3D

Suitable for use in hazardous environments
Elevated protection rating to meet the demands of challenging industrial conditions
Self-locking bracket for rapid installation and straightforward adjustment
Simple insertion of 'drop from the top' into a slot
Extremely high switching frequency

Share on:

Description Download Accessories

Electrical engineering design	PNP
Output feature	typically open
measurements[mm]	25 x 5 x 6.5
Voltage for operation[V]	10...30 DC
Current draw[mA]	< 10
Safety feature rating	III
Reverse polarity safeguard	yes
Max. power-up delay duration[ms]	30
Weight[g]	59.4
Installation	recessed installation compatible
Method of installation	clamping fastener featuring a combined slot / hexagonal socket, width across flats 1.5
Cylinder design	T-slot actuators; (adapters allow mounting to different cylinder types)
measurements[mm]	25 x 5 x 6.5
Substance	PA; stainless steel
Connection	Cable: 2 m, PUR; 3 x 0.14 mm²

Display

Switching condition

1 x LED, yellow

Items provided

rubber elastic stop: 1

cable fastener: 1

Protective cover: 1 unit x T-Nut, E12259

Surrounding temperature value[°C]

-25...60

Safety feature

IP 65; IP 67

Magnetic responsiveness[mT]	2.8
Movement velocity[m/s]	> 10
Electrical engineering design	PNP
Output feature	typically open
Max. voltage drop at switching output DC[V]	2.5
Continuous current rating of the switching output DC[mA]	100
DC switching frequency[Hz]	10000
Overcurrent protection	yes
Overcurrent protection	yes
Hysteresis[mm]	< 1.5
Reproducibility[mm]	< 0.2
