Cylinder Sensor Ifm MK502A
IFM CATEGORIES

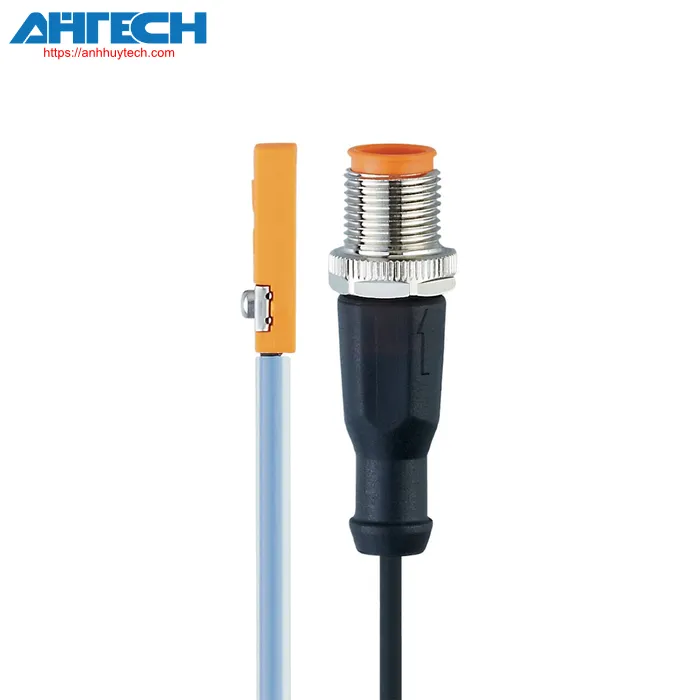

Cylinder Sensor MK502A
Brand: Ifm
Product Code: MKT2020-N/--/A/6,0M/-H/1G/1D
- Suitable for use in hazardous environments
- For interfacing with intrinsically safe circuits
- Minimal hysteresis for precise switch point detection
- Self-locking bracket for rapid installation and straightforward adjustment
- Simple insertion of 'drop from the top' into a slot
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | NAMUR |
| Output feature | typically open |
| measurements[mm] | 25.3 x 5 x 6.5 |
| Connection at signal amplifier | yes |
| Amplifiers for switching applications | connection to certified intrinsically safe circuits with the maximum values: U = 15 V / I = 50 mA / P = 120 mW |
| Rated voltage DC[V] | 8.2 |
| Current draw[mA] | Target not identified: = 1; Target recognized: = 2,2 |
| Safety feature rating | III |
| Reverse polarity safeguard | yes |
Mechanical data
| Weight[g] | 93.9 | ||
| Installation | recessed installation compatible | ||
| Method of installation | clamping fastener featuring a combined slot / hexagonal socket, width across flats 1.5 | ||
| Cylinder design | T-slot actuators | ||
| measurements[mm] | 25.3 x 5 x 6.5 | ||
| Substance | enclosure: PA; retention clamp: stainless steel | ||
| Display |
| ||
| Surrounding temperature value[°C] | -25...70 | ||
| Safety feature | IP 65; IP 67 |
Monitoring range
| Magnetic responsiveness[mT] | 2 | ||
| Movement velocity[m/s] | > 10 | ||
| Electrical engineering design | NAMUR | ||
| Output feature | typically open | ||
| DC switching frequency[Hz] | 2000 | ||
| Overcurrent protection | yes | ||
| Overcurrent protection | yes | ||
| Hysteresis[mm] | 1 | ||
| Reproducibility[mm] | < 0.2 | ||
| Items provided |
|
Download Specification for MK502A
