Inductive Sensor Ifm IE5387
IFM CATEGORIES

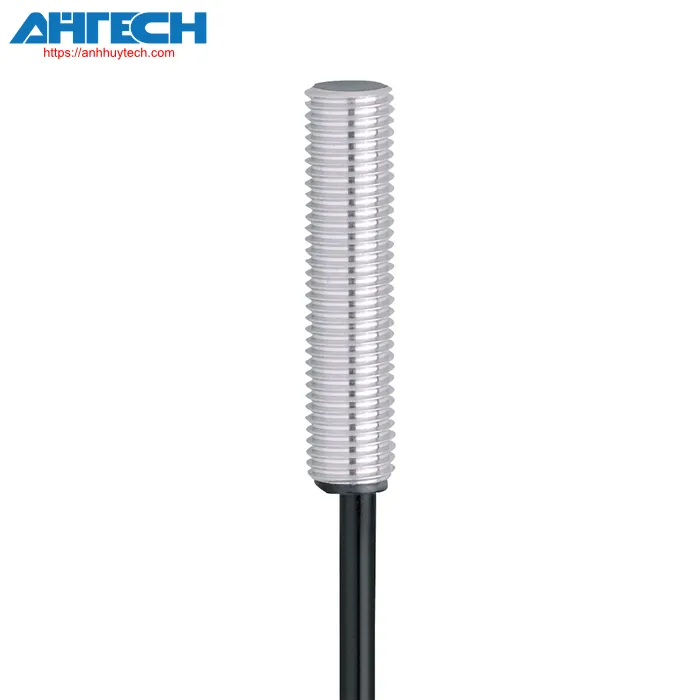

Inductive Sensor IE5387
Brand: Ifm
Product Code: IEBC003BASKG/0,23M
- Compact housing design
- Suitable for applications with limited space
- Compact cable featuring crimp contacts
- Extended sensing range reduces physical wear and tear
- Minimized inventory management thanks to functionality as a three-wire or two-wire unit
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP/NPN |
| Output feature | typically open |
| Detection range[mm] | 3 |
| Housing | Screw-type |
| measurements[mm] | M8 x 1 / L = 37 |
| Voltage for operation[V] | 10...30 DC |
| Current draw[mA] | < 10; (only in 3-wire operation) |
| Safety feature rating | III |
| Reverse polarity safeguard | yes |
| Weight[g] | 22.5 |
| Housing | Screw-type |
| Installation | recessed installation compatible |
| measurements[mm] | M8 x 1 / L = 37 |
| Thread specification | M8 x 1 |
| Substance | brass white bronze plated; sensing surface: LCP |
| Connection | Cable: 0.23 m, PVC; 3 x 0.14 mm² |
Displays / operating elements
| Display |
| ||
| Items provided |
| ||
| Surrounding temperature value[°C] | 0...70 | ||
| Safety feature | IP 67 |
Monitoring range
| Detection range[mm] | 3 |
| Operational range[mm] | 0...2.4 |
| Electrical engineering design | PNP/NPN |
| Output feature | typically open |
| Max. voltage drop at switching output DC[V] | 2.8 |
| Minimum load current[mA] | 2; (only in 2-wire operation) |
| Max. stray current[mA] | 0.5; (only in 2-wire operation) |
| Continuous current rating of the switching output DC[mA] | 100 |
| DC switching frequency[Hz] | 1000 |
| Overcurrent protection | yes |
| Method of overcurrent protection | yes (momentary) |
| Overcurrent protection | yes |
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Hysteresis[% of Sr] | 1...15 |
Download Specification for IE5387
