Inductive Sensor Ifm IES228
IFM CATEGORIES

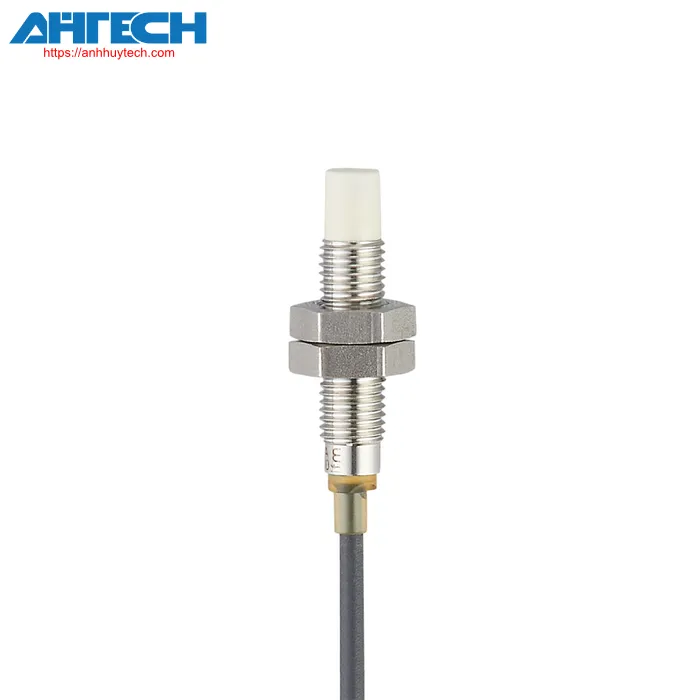

Inductive Sensor IES228
Brand: Ifm
Product Code: IEB3006-APKG/V4A/K1/10M/PUR
- Appropriate for industrial, mobile, cooling, and lubrication applications
- Elevated protection rating to meet the demands of challenging industrial conditions
- Adjustment coefficient K=1: Uniform sensing range across all metals
- Extremely high switching frequency
- Resistant to vibrations and shocks
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | default closed |
| Detection range[mm] | 6 |
| Housing | Screw-type |
| measurements[mm] | M8 x 1 / L = 37.5 |
| System | Extended sensing range; correction factor = 1; immune to magnetic fields |
| Application | Industrial uses |
| Immune to magnetic fields | yes |
| Max. immunity to electromagnetic interference[mT] | 300 |
Mechanical data
| Weight[g] | 125.5 | ||
| Housing | Screw-type | ||
| Installation | non-recessed mountable | ||
| measurements[mm] | M8 x 1 / L = 37.5 | ||
| Thread specification | M8 x 1 | ||
| Substance | stainless steel (1.4404 / 316L); sensing surface: white LCP; LED lens: PEI; locking nuts: stainless steel (1.4404 / 316L) | ||
| Fastening torque[Nm] | A = 6 mm: 2 Nm; B: 5 Nm | ||
| Display |
| ||
| Adjustment coefficient | steel: 1 / stainless steel: 1 / brass: 1 / aluminum: 1 / copper: 1 | ||
| Hysteresis[% of Sr] | 3...15 | ||
| Setting-point drift[% of Sr] | -10...10 | ||
| Adjustment coefficient = 1 | yes |
Outputs
| Electrical engineering design | PNP | |
| Output feature | default closed | |
| Max. voltage drop at switching output DC[V] | 2.5 | |
| Continuous current rating of the switching output DC[mA] | 100 | |
| DC switching frequency[Hz] | 2000 | |
| Overcurrent protection | yes | |
| Overcurrent protection | yes | |
| Voltage for operation[V] | 10...30 DC | |
| Current draw[mA] | < 20 | |
| Safety feature rating | III | |
| Reverse polarity safeguard | yes | |
| Detection range[mm] | 6 | |
| Actual sensing range Sr[mm] | 6 ± 10 % | |
| Operational range[mm] | 0...4.86 | |
| Extended sensing range | yes | |
| Surrounding temperature value[°C] | -40...85 | |
| Safety feature | IP 65; IP 66; IP 67; IP 68; IP 69K | |
| Items provided |
|
Download Specification for IES228
