Inductive Sensor Ifm IF5888
IFM CATEGORIES

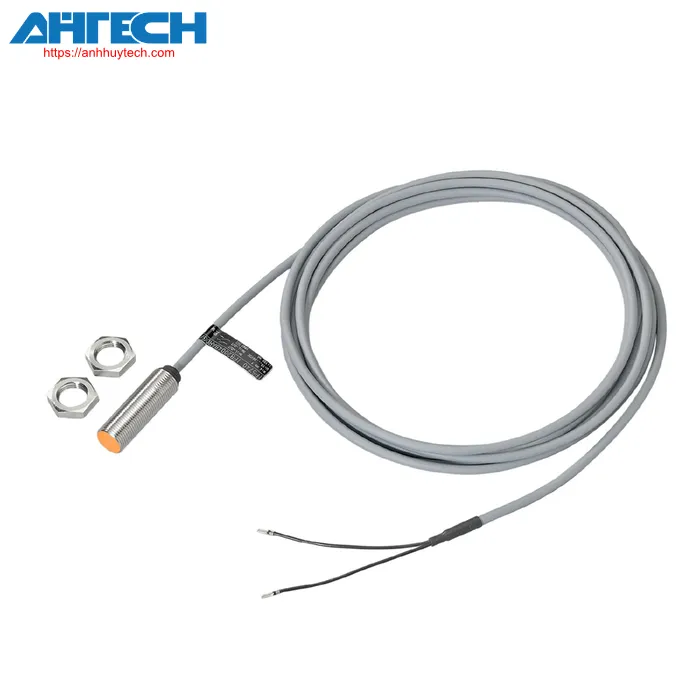

Inductive Sensor IF5888
Brand: Ifm
Product Code: IFB2004BBROG/UP/3M/PH
- Compact housing design
- Suitable for applications with limited space
- Durable metal enclosure designed for harsh industrial conditions
- Two-conductor technology
- For accurate position sensing on machinery
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP/NPN |
| Output feature | default closed |
| Detection range[mm] | 4 |
| Housing | Screw-type |
| measurements[mm] | M12 x 1 / L = 40 |
| System | Extended sensing range |
Mechanical data
| Weight[g] | 89.5 | ||
| Housing | Screw-type | ||
| Installation | recessed installation compatible | ||
| measurements[mm] | M12 x 1 / L = 40 | ||
| Thread specification | M12 x 1 | ||
| Substance | brass white bronze plated; PBT | ||
| Display |
| ||
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3 | ||
| Hysteresis[% of Sr] | 3...15 | ||
| Setting-point drift[% of Sr] | -10...10 |
Outputs
| Electrical engineering design | PNP/NPN | |
| Output feature | default closed | |
| Max. voltage drop at switching output DC[V] | 5 | |
| Minimum load current[mA] | 2 | |
| Max. stray current[mA] | 1 | |
| Continuous current rating of the switching output DC[mA] | 100 | |
| DC switching frequency[Hz] | 110 | |
| Overcurrent protection | no | |
| Overcurrent protection | no | |
| Voltage for operation[V] | 10...36 DC | |
| Safety feature rating | II | |
| Reverse polarity safeguard | no | |
| Detection range[mm] | 4 | |
| Actual sensing range Sr[mm] | 4 ± 10 % | |
| Operational range[mm] | 0...3.25 | |
| Extended sensing range | yes | |
| Surrounding temperature value[°C] | -25...70 | |
| Safety feature | IP 67 | |
| Items provided |
|
Download Specification for IF5888
