Inductive Sensor Ifm IFC210
IFM CATEGORIES

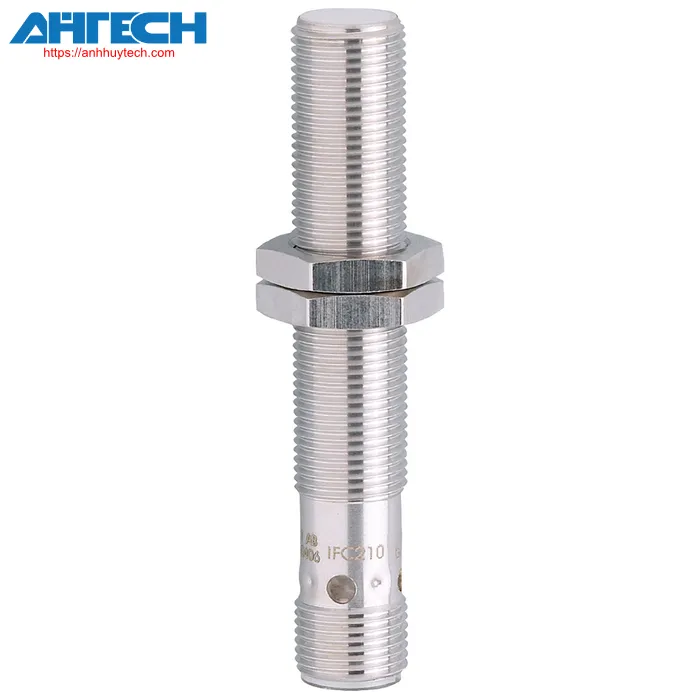

Inductive Sensor IFC210
Brand: Ifm
Product Code: IFKC004BASKG/M/US-104-DRS/2LED
- Intended for application in machine tools and metalworking
- Impervious to oils and coolants
- Extended sensing range reduces physical wear and tear
- Incorporating optical mounting and adjustment assistance
- Durable and easily readable laser-printed label
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP/NPN |
| Output feature | typically open |
| Detection range[mm] | 4 |
| Housing | Screw-type |
| measurements[mm] | M12 x 1 / L = 70 |
| System | gold-plated terminals; Extended sensing range; optical adjustment aid |
| Application | Lubricants and cooling fluids |
Mechanical data
| Weight[g] | 33.6 | ||||
| Housing | Screw-type | ||||
| Installation | recessed installation compatible | ||||
| measurements[mm] | M12 x 1 / L = 70 | ||||
| Thread specification | M12 x 1 | ||||
| Substance | brass white bronze plated; sensing surface: ceramics | ||||
| Display |
| ||||
| Optical setting aid | yes | ||||
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 | ||||
| Hysteresis[% of Sr] | 3...15 | ||||
| Setting-point drift[% of Sr] | -10...10 |
Outputs
| Electrical engineering design | PNP/NPN | |
| Output feature | typically open | |
| Max. voltage drop at switching output DC[V] | 2.8 | |
| Minimum load current[mA] | 2; (only in 2-wire operation) | |
| Max. stray current[mA] | 0.5; (only in 2-wire operation) | |
| Continuous current rating of the switching output DC[mA] | 100 | |
| DC switching frequency[Hz] | 500 | |
| Overcurrent protection | yes | |
| Method of overcurrent protection | yes (momentary) | |
| Overcurrent protection | yes | |
| Voltage for operation[V] | 10...30 DC | |
| Current draw[mA] | 12; (24 V) | |
| Safety feature rating | II | |
| Reverse polarity safeguard | yes | |
| Detection range[mm] | 4 | |
| Actual sensing range Sr[mm] | 4 ± 10 % | |
| Operational range[mm] | 0...3.25 | |
| Extended sensing range | yes | |
| Surrounding temperature value[°C] | -25...70 | |
| Safety feature | IP 68; ("Coolant") | |
| Items provided |
|
Download Specification for IFC210
