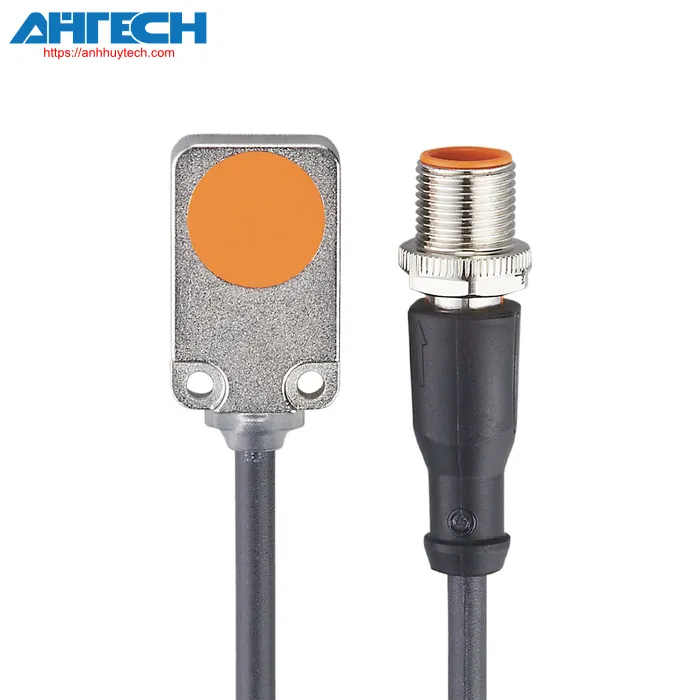

Inductive Sensor Ifm IQ2002

IFM CATEGORIES

Brand: Ifm
Product Code: IQ23008BBPKG/0.3M/PUR/US

Recessed installation and an extensive temperature value range enhance sensor durability and reliability
Especially compact enclosure designed for applications with limited space

Share on:

Description Download Accessories

Electrical engineering design	PNP
Output feature	typically open
Detection range[mm]	8
Housing	rectangular shape
measurements[mm]	20 x 8 x 32
System	Extended sensing range
Connection	Cable: 0.3 m, PUR, Ø 4.9 mm; 3 x 0.34 mm²

Weight[g]

42.7

Housing

rectangular shape

Installation

recessed installation compatible

measurements[mm]

20 x 8 x 32

Substance

die-cast zinc specialized coating; sensing surface: PBT orange; LED lens: TPU (urethane); encapsulation: PUR

Display

Show operation	1 x LED, green
Switching condition	1 x LED, yellow

Adjustment coefficient

steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3

Hysteresis[% of Sr]

1...15

Setting-point drift[% of Sr]

-10...10

Electrical engineering design	PNP
Output feature	typically open
Max. voltage drop at switching output DC[V]	2.5
Continuous current rating of the switching output DC[mA]	100
DC switching frequency[Hz]	400
Overcurrent protection	yes
Overcurrent protection	yes
Voltage for operation[V]	10...30 DC
Current draw[mA]	< 10
Safety feature rating	III
Reverse polarity safeguard	yes
Detection range[mm]	8
Actual sensing range Sr[mm]	8 ± 10 %
Operational range[mm]	0...6.48
Extended sensing range	yes
Surrounding temperature value[°C]	-40...85
Safety feature	IP 65; IP 66; IP 67; IP 68
