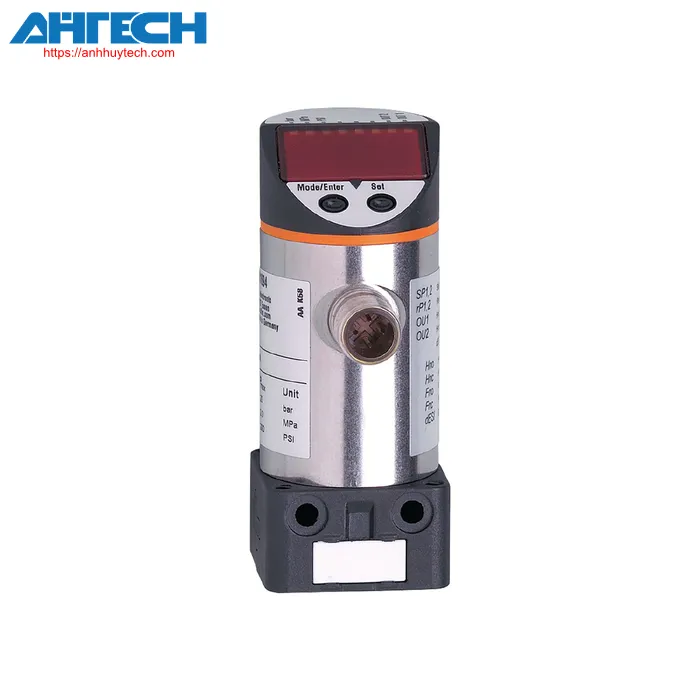

Pressure Sensor PN7834

Brand: Ifm
Product Code: PN-010-RBR18-QFRKG/US/ /V

Dual switching outputs, with one that can be set as a diagnostic output
Designed for pneumatic applications
Easily readable numerical display
Differential force per unit area measurement achieved without requiring a second force per unit area sensor connection
Selectable force per unit area units specific to each country

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Product characteristics

Total count of inputs and outputs

Quantity of digital outputs: 2

Measuring span

-1...10 bar

-14.5...145 psi

-0.1...1 MPa

Connection for process

screw connection G 1/8 with internal thread

System

gold-plated terminals

Application

for commercial applications

Media

pressurized air

Potentially appropriate for

additional media available upon request

Intermediate temperature value[°C]

0...60

Minimum force per unit area before bursting

30 bar

435 psi

3 MPa

Pressure classification

20 bar

290 psi

2 MPa

Kind of force per unit area

relative force per unit area; vacuum

Programmable delay time dS, dr[s]

0; 0,2...50

Weight[g]

173.5

Housing

cylindrical

measurements[mm]

Ø 34 / L = 86.6

Substance

stainless steel (1.4301 / 304); PPS; PC; PBT; PEI; FKM

Substances (contacted components)

stainless steel (1.4567 / 304Cu); brass; FKM; PPS; silicon (coated)

Minimum force per unit area cycles

50 million

Connection for process

screw connection G 1/8 with internal thread

Software / programming

Configuration options

hysteresis / range; typically open / default closed; diagnostic function; switching method; switch-on/switch-off delay; damping; display unit

Surrounding temperature value[°C]

-25...85

Temperature for storage[°C]

-25...85

Safety feature

IP 67

Measuring span

-1...10 bar

-14.5...145 psi

-0.1...1 MPa

Setpoint SP

-0.9...10 bar

-13...145 psi

-0.09...1 MPa

Reset threshold rP

-0.95...9.95 bar

-14...144 psi

-0.095...0.995 MPa

In increments of

0.05 bar

1 psi

0.005 MPa

default configuration

	SP1 = 2.50 bar	rP1 = 2.30 bar
	SP2 = 7.50 bar	rP2 = 7.30 bar

Inputs / outputs

Total count of inputs and outputs	Quantity of digital outputs: 2
Voltage for operation[V]	18...36 DC; (to SELV/PELV)
Current draw[mA]	< 50
Minimum insulation resistance[MO]	100; (500 V DC)
Safety feature rating	III
Reverse polarity safeguard	yes
Voltage surge protection	yes; (< 40 V)
Activation delay time[s]	0.3
Built-in watchdog	yes
Overall count of outputs	2
Output response	output signal
Electrical engineering design	PNP/NPN
Count of digital outputs	2
Output feature	typically open / closed; (customizable)
Max. voltage drop at switching output DC[V]	2
Continuous current rating of the switching output DC[mA]	250
DC switching frequency[Hz]	< 170
Overcurrent protection	yes
Method of overcurrent protection	yes (momentary)
Precision of switch points/span>[% of the span]	< ± 0,5
Reproducibility[% of the span]	< ± 0,1; (with temperature value fluctuations < 10 K)
Characteristics variation[% of the span]	< ± 0.25 (BFSL) / < ± 0.5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis variation[% of the span]	< ± 0,25
Extended stability[% of the span]	< ± 0,05; (per 6 months)
Temperature coefficient value for the zero reference[% of the span / 10 K]	0,2; (0...60 °C)
Temperature coefficient value for the range[% of the span / 10 K]	0,2; (0...60 °C)
