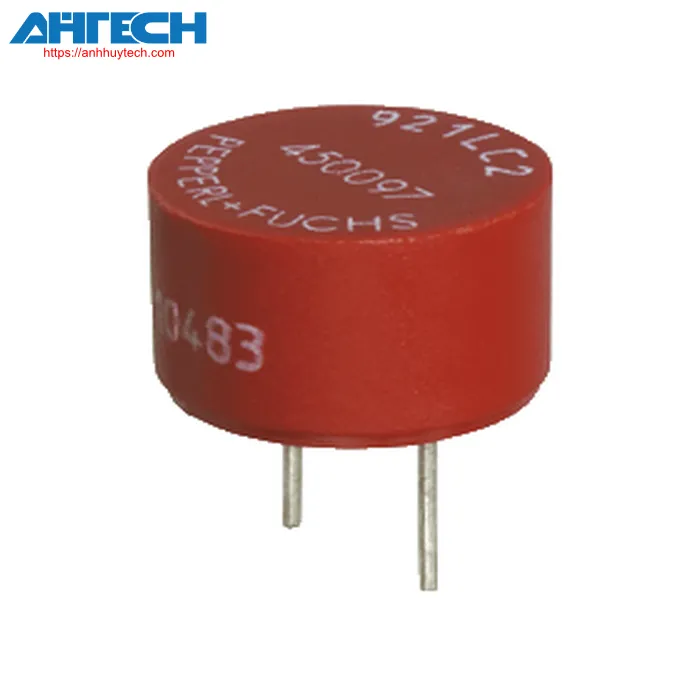

Inductive Sensor Pepperl+Fuchs 921LC2
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of 921LC2
| Overall specifications | ||
|---|---|---|
| transition function | Typically closed (NC) | |
| Output configuration | NAMUR | |
| Specified functioning distance | 2 mm | |
| mounting | flush | |
| Guaranteed functioning distance | 0 ... 1.62 mm | |
| Output configuration | 2-wire | |
| Rated specifications | ||
| nominal voltage | 8.2 V | |
| Operational voltage | 5 ... 15 V | |
| commutation frequency | 0 ... 1000 Hz | |
| Current draw | ||
| Measurement plate not found | min. 2.7 mA | |
| Measuring plate identified | = 1.8 mA | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| NAMUR | EN 60947-5-6:2000 | |
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -10 ... 65 °C (14 ... 149 °F) | |
| Mechanical characteristics | ||
| Linkage method | Solder joint | |
| Housing material | PA | |
| detection surface | PA | |
| Protection等级 | IP67 | |
| Measurements | ||
| Length | 6.5 mm | |
| Diameter | 10 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for 921LC2
