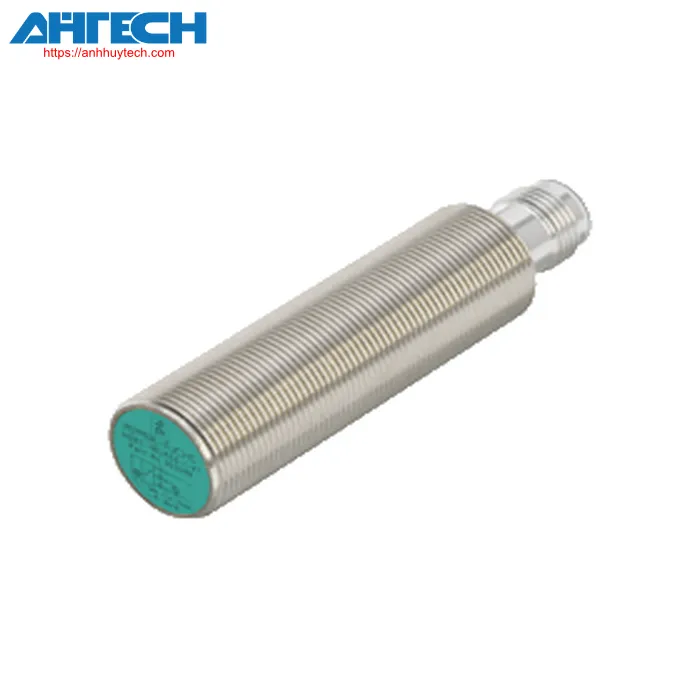

Inductive Sensor Pepperl+Fuchs NBB5-18GM60-I-V1

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Overall specifications
Output configuration		Analog current signal output
mounting		flush
Output configuration		DC
Measurement range		1 ... 5 mm
Output configuration		3-wire
Rated specifications
Operational voltage		10 ... 30 V DC typ. 20 V DC
Polarity reversal protection		yes
Repeatability accuracy		0 ... 80 µm
No-load input current		= 12 mA
Analog signal output
Output configuration		4 ... 20 mA
Gradient of output characteristic		4 mA / mm
Non-linearity error		= ± 5 % of full-scale value
Load resistance		= 1000 O typ. 500 O
Rate of current increase
	4 ... 20 mA	max. 30.9 A/s
	20 ... 4 mA	max. 11.1 A/s
restoration time		1 ... 10 ms , typ. 5 ms
Adjustment tolerance of reference point		= ± 5 % of full-scale value
Temperature variation		= ± 0.15 %/K of full-scale value
Residual voltage ripple		± 125 µA
Adherence to standards and directives
Compliance with standards
	Standards	EN IEC 60947-5-2
Certifications and approvals
UL certification		cULus approved, Class 2 power supply
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Mechanical characteristics
Linkage method		plug connector M12 x 1, 4-contact
Housing material		brass with a nickel coating
detection surface		PBT
Protection等级		IP67
Measurements
	Length	75 mm
	Diameter	18 mm
