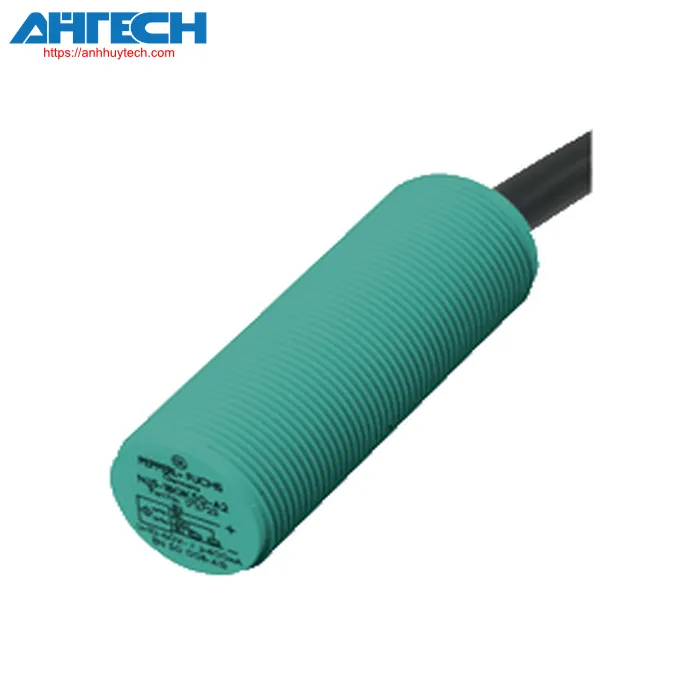

Inductive Sensor Pepperl+Fuchs NBN8-18GK50-A2-Y70158255

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Overall specifications
transition function		supplementary
Output configuration		PNP
Specified functioning distance		8 mm
mounting		non-flush
Output configuration		DC
Guaranteed functioning distance		0 ... 6.48 mm
diminution factor r_Al		0.45
diminution factor r_Cu		0.4
diminution factor r₃₀₄		0.7
Output configuration		4-wire
Rated specifications
Operational voltage		10 ... 30 V
commutation frequency		0 ... 500 Hz
Polarity reversal protection		reverse polarity safeguarded
Overcurrent protection		pulsing
voltage loss		= 3 V
Operational current		0 ... 200 mA
No-load input current		= 25 mA
State indication for switching		LED, yellow
Adherence to standards and directives
Compliance with standards
	Standards	EN IEC 60947-5-2
Certifications and approvals
UL certification		cULus Certified, Standard Use
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Mechanical characteristics
Linkage method		permanent cable with plug
Housing material		PBT
detection surface		PBT
Protection等级		IP69K
Connector device
	Threading process	M12 x 1
	Pin count	4
Cable
	Cable thickness	4.8 mm ± 0.2 mm
	Curvature radius	> 10 x cable diameter
	Material	PVC
	Color	Gray
	Core count	4
	cross section of the core	0.34 mm²
	Length	1200 mm
Measurements
	Length	50 mm
	Diameter	18 mm
