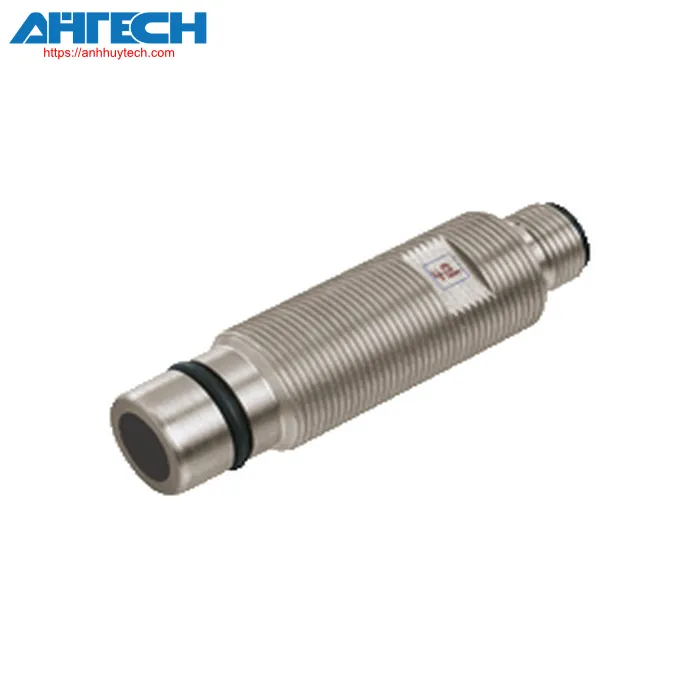

Inductive Sensor Pepperl+Fuchs NCB1,5-18GM60-E3-D-V1

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Item Specification
Inductive proximity sensor

Overall specifications
transition function		Typically closed (NC)
Output configuration		PNP
Specified functioning distance		1.5 mm
mounting		flush
Output configuration		DC
Guaranteed functioning distance		0 ... 1.22 mm
diminution factor r₃₀₄		0.5
Output configuration		3-wire
Rated specifications
Operational voltage		10 ... 60 V DC
commutation frequency		0 ... 1500 Hz
Deadband		1 ... 10 % typ. 5 %
Polarity reversal protection		reverse polarity safeguarded
Overcurrent protection		pulsing
voltage loss		= 2.5 V
Operational current		0 ... 200 mA
No-load input current		= 10 mA
Boundary data
functional pressure		350 bar (5076.4 psi)
Parameters related to functional safety
MTTF_d		1240 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Adherence to standards and directives
Compliance with standards
	Standards	EN IEC 60947-5-2
Certifications and approvals
UL certification		cULus Certified, Standard Use
CCC certification		Approved by China Compulsory Certification (CCC)
Environmental conditions
Ambient temperature		-35 ... 80 °C (-31 ... 176 °F)
Mechanical characteristics
Linkage method		plug connector
Housing material		Stainless steel 1.4305 / AISI 303
detection surface		Epoxy resin (black)
Protection等级		IP67
Connector device
	Threading process	M12 x 1
	Pin count	4
Mass		89 g
Measurements
	Length	65 mm
	Diameter	18 mm
