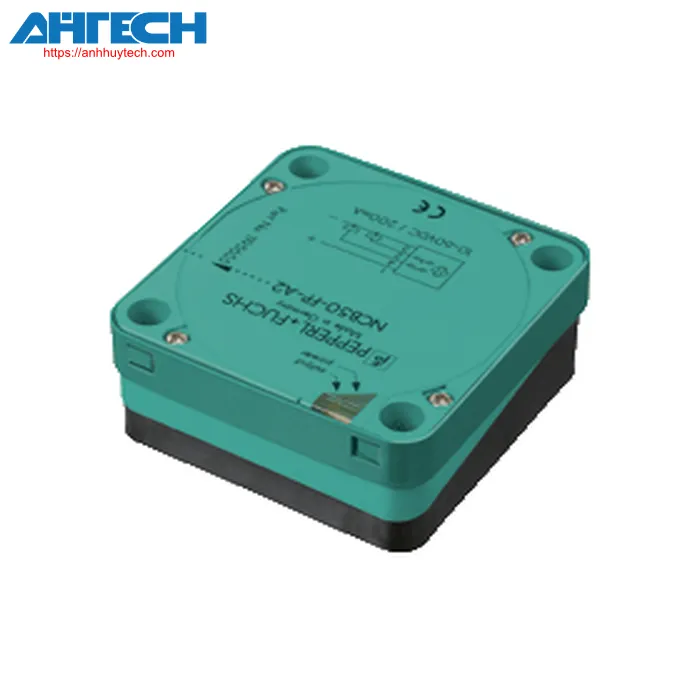

Inductive Sensor NCB50-FP-A2-P1-3G-3D
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NCB50-FP-A2-P1-3G-3D
| Overall specifications | ||
|---|---|---|
| transition function | supplementary | |
| Output configuration | PNP | |
| Specified functioning distance | 50 mm | |
| mounting | flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 40.5 mm | |
| diminution factor rAl | 0.38 | |
| diminution factor rCu | 0.35 | |
| diminution factor r304 | 0.83 | |
| Output configuration | 4-wire | |
| Rated specifications | ||
| Operational voltage | 10 ... 60 V DC | |
| commutation frequency | 0 ... 80 Hz | |
| Deadband | typ. 3 % | |
| Polarity reversal protection | reverse polarity safeguarded | |
| voltage loss | = 3 V | |
| Operational current | 0 ... 200 mA | |
| Non-conducting current | 0 ... 0.5 mA | |
| No-load input current | = 20 mA | |
| Delay time prior to availability | = 300 ms | |
| Voltage functioning indicator | LED, green | |
| State indication for switching | LED, yellow | |
| Parameters related to functional safety | ||
| MTTFd | 670 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| IECEx certification | ||
| Equipment protection rating Gc (ec) | IECEx TUR 21.0019X | |
| Equipment protection rating Dc (tc) | IECEx TUR 21.0020X | |
| ATEX certification | ||
| Equipment protection rating Gc (ec) | TÜV 20 ATEX 8525 X | |
| Equipment protection rating Dc (tc) | TÜV 20 ATEX 8526 X | |
| UL certification | cULus Certified, Standard Use | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical characteristics | ||
| Linkage method | screw terminals | |
| Linkage information | Up to two conductors with identical core cross-section may be connected to a single terminal connection! torque specification 1.2 Nm + 10 % |
|
| cross section of the core | up to 2.5 mm2 , length of stripped insulation: 7 mm | |
| Minimum conductor cross-section | min. 0.5 mm2 (incl. wire-end terminals for use with flexible conductors) | |
| Maximum core cross-section area | max. 2.5 mm2 (incl. wire-end terminals for use with flexible conductors) | |
| Connection point (system side) | screw terminals, M20 x 1.5 cord grip, usable thread length of 10 mm, maximum screw-in depth of 10 mm | |
| Housing material | PBT | |
| detection surface | PBT | |
| enclosure base | PBT | |
| Protection等级 | IP67 | |
| Fastening torque, enclosure screws | 1 Nm | |
| Measurements | ||
| Height | 40 mm | |
| Width | 84 mm | |
| Length | 84 mm | |
| Overview information | ||
| Usage in hazardous environments | refer to instruction manuals | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NCB50-FP-A2-P1-3G-3D
