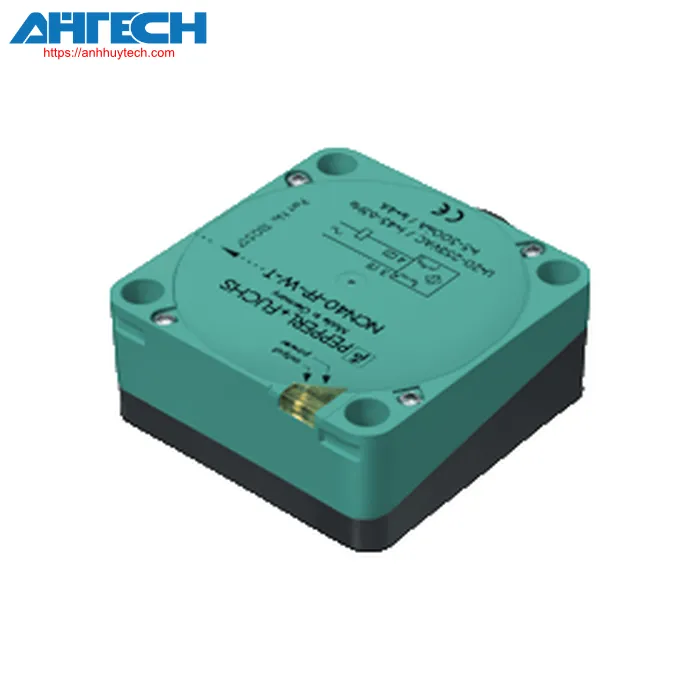

Inductive Sensor Pepperl+Fuchs NCN40-FP-W-T-P1
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NCN40-FP-W-T-P1
| Overall specifications | ||
|---|---|---|
| transition function | Normally open/closed (NO/NC) | |
| Output configuration | Two-wire | |
| Specified functioning distance | 40 mm | |
| mounting | non-flush | |
| Output configuration | AC | |
| Guaranteed functioning distance | 0 ... 32.4 mm | |
| diminution factor rAl | 0.4 | |
| diminution factor rCu | 0.3 | |
| diminution factor r304 | 0.85 | |
| Output configuration | 2-wire | |
| Rated specifications | ||
| Operational voltage | 20 ... 253 V | |
| commutation frequency | 0 ... 20 Hz | |
| Deadband | typ. 3 % | |
| Overcurrent protection | no | |
| voltage loss | = 5 V typ. 4V | |
| Transient current (20 ms, 0.1 Hz) | max. 3000 mA | |
| Temperature variation | -10 ... 15 % at < -25 °C | |
| Operational current | 5 ... 500 mA | |
| Non-conducting current | 0.3 ... 1 mA typ. 0.7 mA | |
| Delay time prior to availability | = 100 ms | |
| Voltage functioning indicator | LED, green | |
| State indication for switching | LED, yellow | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use | |
| CSA certification | cCSAus Listed, Intended for General Use | |
| CCC certification | Approved by China Compulsory Certification (CCC) | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 100 °C (-13 ... 212 °F) | |
| Mechanical characteristics | ||
| Linkage method | screw terminals | |
| Linkage information | Up to two conductors with identical core cross-section may be connected to a single terminal connection! torque specification 1.2 Nm + 10 % |
|
| cross section of the core | up to 2.5 mm2 | |
| Minimum conductor cross-section | without cable end sleeves 0.5 mm2 , incorporating connector sleeves 0.34 mm2 | |
| Maximum core cross-section area | without cable end sleeves 2.5 mm2 , featuring connector sleeves 1.5 mm2 | |
| Housing material | PBT | |
| detection surface | PBT | |
| enclosure base | PBT | |
| Protection等级 | IP68 | |
| Fastening torque, enclosure screws | 1 Nm | |
| Measurements | ||
| Height | 40 mm | |
| Width | 80 mm | |
| Length | 80 mm | |
| Note | 1) In the temperature range below 0 °C, the allowable functioning voltage Ub 80...253 V Safety fuse = 2 A (fast-acting) as per IEC 60127-2 Sheet 1 Recommendation: after a short circuit, verify that the device is functioning properly |
|
