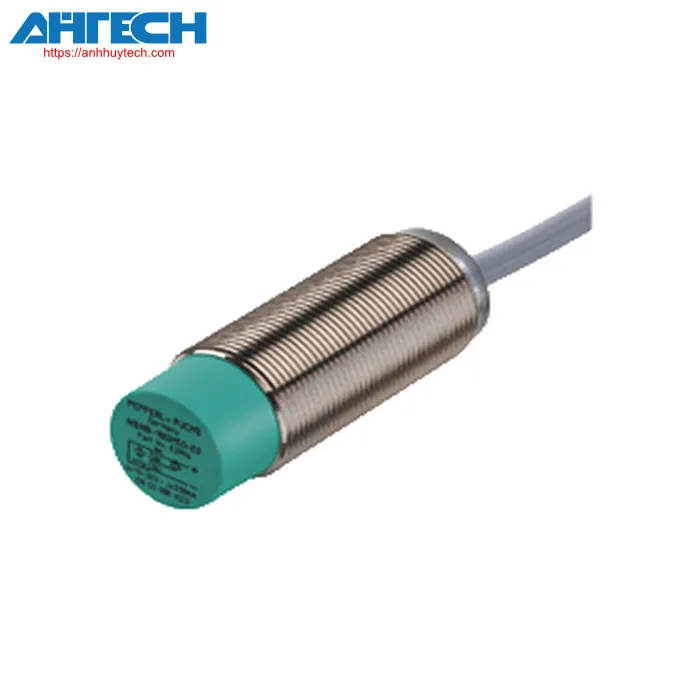

Inductive Sensor NCN8-18GM50-E2-3G-3D-5M
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NCN8-18GM50-E2-3G-3D-5M
| Overall specifications | ||
|---|---|---|
| transition function | normally open (NO) | |
| Output configuration | PNP | |
| Specified functioning distance | 8 mm | |
| mounting | non-flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 6.48 mm | |
| Actual sensing distance | 7.2 ... 8.8 mm typ. 8 mm | |
| diminution factor rAl | 0.45 | |
| diminution factor rCu | 0.4 | |
| diminution factor r304 | 0.7 | |
| Output configuration | 3-wire | |
| Rated specifications | ||
| Operational voltage | 10 ... 60 V | |
| commutation frequency | 0 ... 400 Hz | |
| Deadband | 1 ... 10 % typ. 5 % | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | pulsing | |
| voltage loss | = 3 V | |
| voltage reduction at IL | ||
| Voltage reduction IL = 200 mA, actuating element activated | 1.5 ... 2.5 V typ. 1.9 V | |
| Operational current | 0 ... 200 mA | |
| Minimal functioning current | 0 mA | |
| Non-conducting current | 0 ... 0.5 mA typ. 0.01 mA | |
| Non-conducting current IU =40 °C, deactivating the switching element | = 100 µA | |
| No-load input current | = 10 mA | |
| Delay time prior to availability | &les | |
| State indication for switching | LED, yellow | |
| Parameters related to functional safety | ||
| MTTFd | 1497 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| IECEx certification | ||
| Equipment protection rating Gc (ec) | IECEx TUR 21.0017X | |
| Equipment protection rating Dc (tc) | IECEx TUR 21.0018X | |
| ATEX certification | ||
| Equipment protection rating Gc (ec) | TÜV 20 ATEX 8523 X | |
| Equipment protection rating Dc (tc) | TÜV 20 ATEX 8524 X | |
| UL certification | cULus Certified, Standard Use, Class 2 Power Supply | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical characteristics | ||
| Linkage method | cable | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| detection surface | PBT | |
| Protection等级 | IP67 | |
| Cable | ||
| wire terminal ferrules | yes | |
| Cable thickness | 6.4 mm ± 0.2 mm | |
| Curvature radius | > 10 x cable diameter | |
| Material | PVC | |
| Color | grey | |
| Core count | 3 | |
| cross section of the core | 0.5 mm2 | |
| Length | 5 m | |
| Mass | 329 g | |
| Measurements | ||
| Length | 50 mm | |
| Diameter | 18 mm | |
| Overview information | ||
| Usage in hazardous environments | refer to instruction manuals | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
