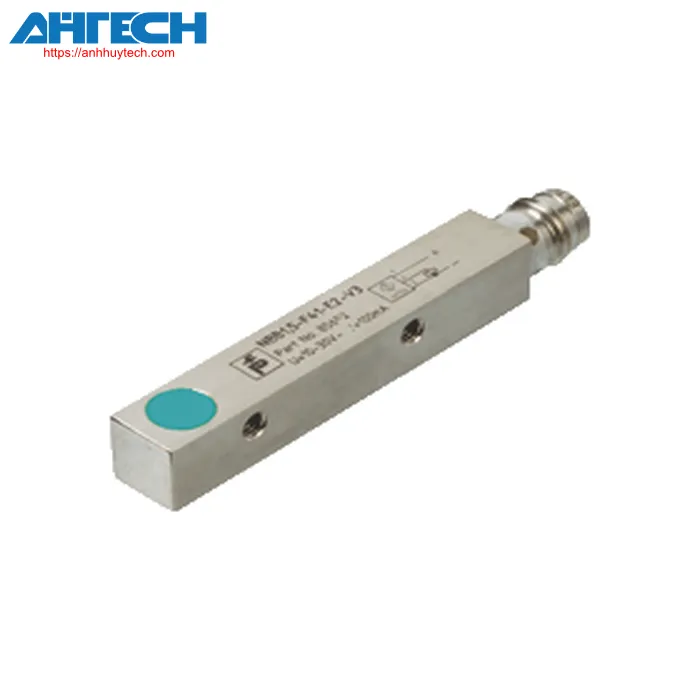

Inductive Sensor Pepperl+Fuchs NEB3-F41-E2-V3
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NEB3-F41-E2-V3
| Overall specifications | ||
|---|---|---|
| transition function | normally open (NO) | |
| Output configuration | PNP | |
| Specified functioning distance | 3 mm | |
| mounting | nearly flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 0 ... 2.4 mm | |
| Actuating component | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 9 mm x 9 mm x 1 mm |
|
| diminution factor rAl | 0.35 | |
| diminution factor rCu | 0.3 | |
| diminution factor r304 | 0.7 | |
| diminution factor rBrass | 0.45 | |
| Output configuration | 3-wire | |
| Rated specifications | ||
| mounting requirements | ||
| B | 6 mm | |
| C | 9 mm | |
| F | 16 mm | |
| G | 1 mm | |
| Operational voltage | 10 ... 30 V DC | |
| commutation frequency | 0 ... 1000 Hz | |
| Deadband | 2 ... 20 % typ. 10 % | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | pulsing | |
| Overload capacity | yes | |
| Cable breakage protection | yes | |
| Inductive surge protection | yes | |
| Overvoltage protection | yes | |
| Ripple | = 10 % | |
| voltage loss | = 2 V | |
| Repeatability accuracy | 0.15 mm | |
| Operational current | 0 ... 200 mA , above 50°C max. 150 mA | |
| Non-conducting current | = 10 µA | |
| No-load input current | = 15 mA | |
| Delay time prior to availability | = 50 ms | |
| State indication for switching | LED, yellow | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use, Class 2 Power Supply | |
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 85 °C (-13 ... 185 °F) | |
| Ambient storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical characteristics | ||
| Linkage method | plug connector | |
| Housing material | brass with a nickel coating | |
| detection surface | PBT | |
| Protection等级 | IP67 | |
| Connector device | ||
| Threading process | M8 x 1 | |
| Pin count | 3 | |
| Mass | 20 g | |
| Measurements | ||
| Height | 8 mm | |
| Width | 8 mm | |
| Length | 50 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NEB3-F41-E2-V3
Download PDF
