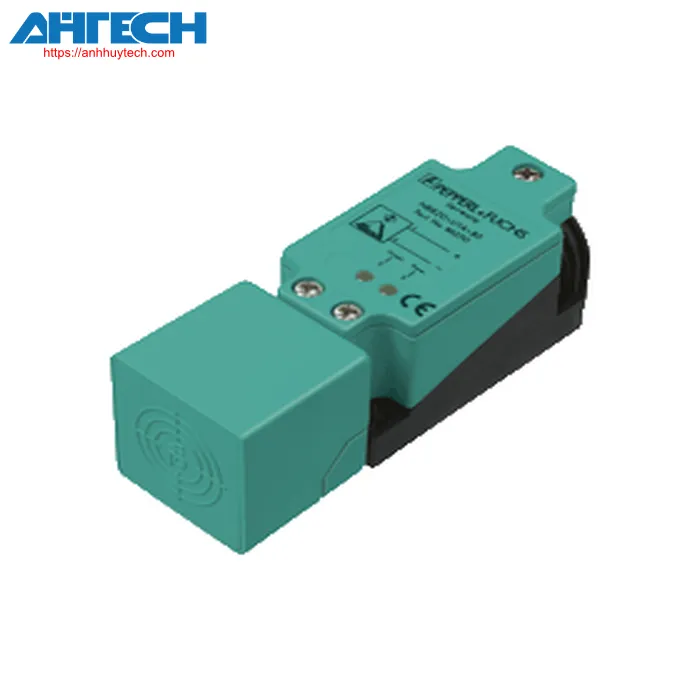

Inductive Sensor Pepperl+Fuchs NJ20P+U1+A2
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NJ20P+U1+A2
| Overall specifications | ||
|---|---|---|
| transition function | supplementary | |
| Output configuration | PNP | |
| Specified functioning distance | 20 mm | |
| mounting | non-flush | |
| Output configuration | DC | |
| Guaranteed functioning distance | 1 ... 16.2 mm | |
| diminution factor rAl | 1 | |
| diminution factor rCu | 1 | |
| diminution factor rSt37 | 0 | |
| diminution factor rBrass | 1 (Minimum distance: 2 mm) | |
| Output configuration | 4-wire | |
| Rated specifications | ||
| Operational voltage | 10 ... 30 V | |
| commutation frequency | 0 ... 200 Hz | |
| Deadband | 1 ... 10 % typ. 5 % | |
| Polarity reversal protection | reverse polarity safeguarded | |
| Overcurrent protection | pulsing | |
| voltage loss | = 3 V | |
| Operational current | 0 ... 200 mA | |
| No-load input current | = 20 mA | |
| Delay time prior to availability | = 10 ms | |
| Voltage functioning indicator | LED, green | |
| State indication for switching | LED, yellow | |
| Parameters related to functional safety | ||
| MTTFd | 772 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus Certified, Standard Use | |
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical characteristics | ||
| Linkage method | terminal chamber | |
| Linkage information | Up to two conductors with identical core cross-section may be connected to a single terminal connection! torque specification 1.2 Nm + 10 % |
|
| cross section of the core | up to 2.5 mm2 | |
| Minimum conductor cross-section | without cable end sleeves 0.5 mm2 , incorporating connector sleeves 0.34 mm2 | |
| Maximum core cross-section area | without cable end sleeves 2.5 mm2 , featuring connector sleeves 1.5 mm2 | |
| Housing material | PBT | |
| detection surface | PBT | |
| enclosure base | PBT | |
| Protection等级 | IP68 | |
| Measurements | ||
| Height | 40 mm | |
| Width | 40 mm | |
| Length | 118 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27274001 |
| ECLASS 12.0 | 27274001 |
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
Download Specification for NJ20P+U1+A2
