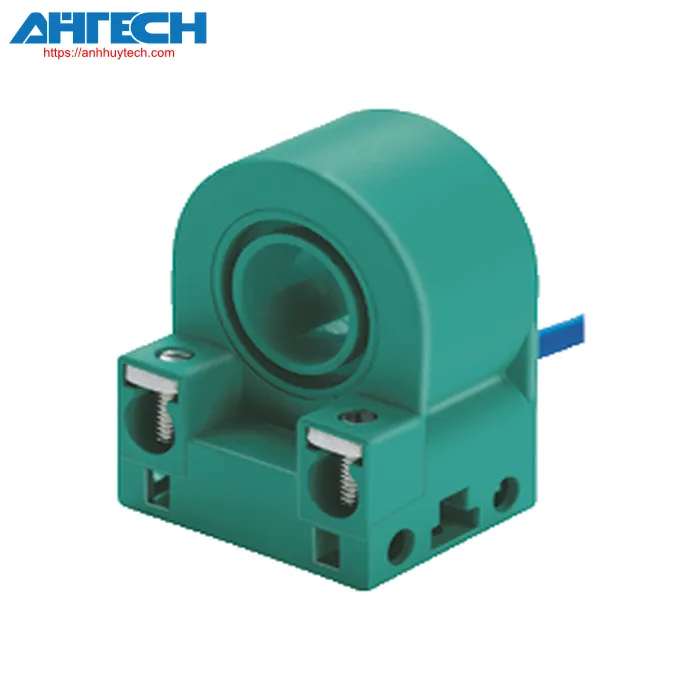

Inductive Sensor Pepperl+Fuchs RC10-14-N3-Y110970

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Overall specifications
transition function		Typically closed (NC)
Output configuration		NAMUR, dual-state
Internal diameter		10 mm
Calibration cylinder
	Diameter	2.5 mm
	Length	3 mm
Measuring taper
	Material	9S20K
Output configuration		2-wire
Rated specifications
nominal voltage		8.2 V (R_i approximately 1 kΩ
Deadband		typ. 1 %
Polarity reversal protection		reverse polarity safeguarded
Current draw
	Traverse B	3 mA
	Traverse A	1 mA
Delay time prior to availability		= 5 ms
Adherence to standards and directives
Compliance with standards
	NAMUR	EN 60947-5-6:2000 IEC 60947-5-6:1999
	Standards	EN IEC 60947-5-2
Certifications and approvals
ATEX certification
	Equipment protection rating Gb	PTB 99 ATEX 2128 X
UL certification		cULus Certified, Standard Use
Environmental conditions
Ambient temperature		-20 ... 100 °C (-4 ... 212 °F)
Mechanical characteristics
Linkage method		cable PVC , 2 m
cross section of the core		0.14 mm²
Housing material		PBT
Protection等级		IP67
Cable
	Curvature radius	> 10 times cable diameter
Measurements
	Height	32.5 mm
	Width	25 mm
	Length	20 mm
Overview information
Usage in hazardous environments		refer to instruction manuals
