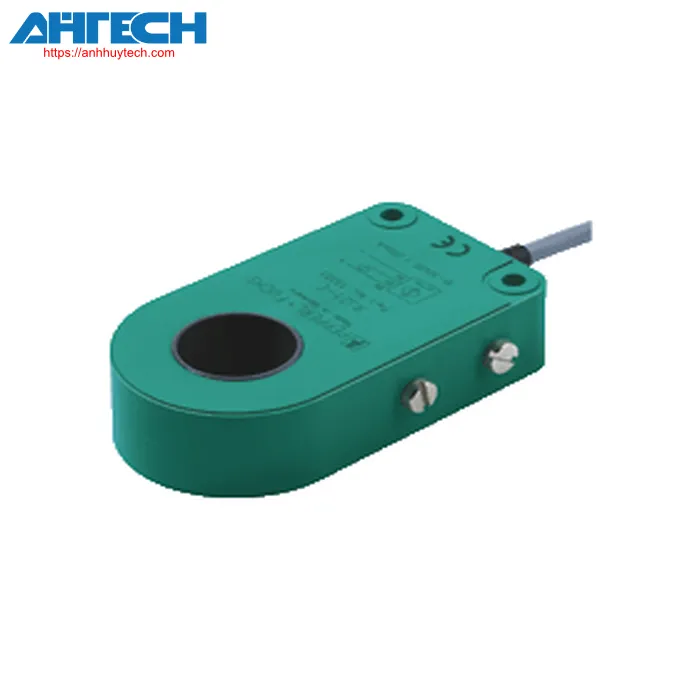

Inductive Sensor Pepperl+Fuchs RJ21-E2-0,1M-V1

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Overall specifications
transition function		normally open (NO)
Output configuration		PNP
Output configuration		DC
Internal diameter		21 mm
Calibration cylinder
	Diameter	6 mm
	Length	12 mm
Output configuration		3-wire
Rated specifications
nominal voltage		8 V
Operational voltage		10 ... 30 V
commutation frequency		0 ... 1000 Hz
Polarity reversal protection		reverse polarity safeguarded
Overcurrent protection		pulsing
voltage loss		= 3 V
Operational current		0 ... 200 mA
No-load input current		= 20 mA
Adherence to standards and directives
Compliance with standards
	Standards	EN IEC 60947-5-2
Certifications and approvals
UL certification		cULus Certified, Standard Use
Environmental conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Mechanical characteristics
Linkage method		Cable connector M12 x 1, 4-pin, PVC cable, 100 mm
cross section of the core		0.34 mm²
Housing material		PBT
Protection等级		IP67
Measurements
	Height	80 mm
	Width	45 mm
	Length	20 mm
