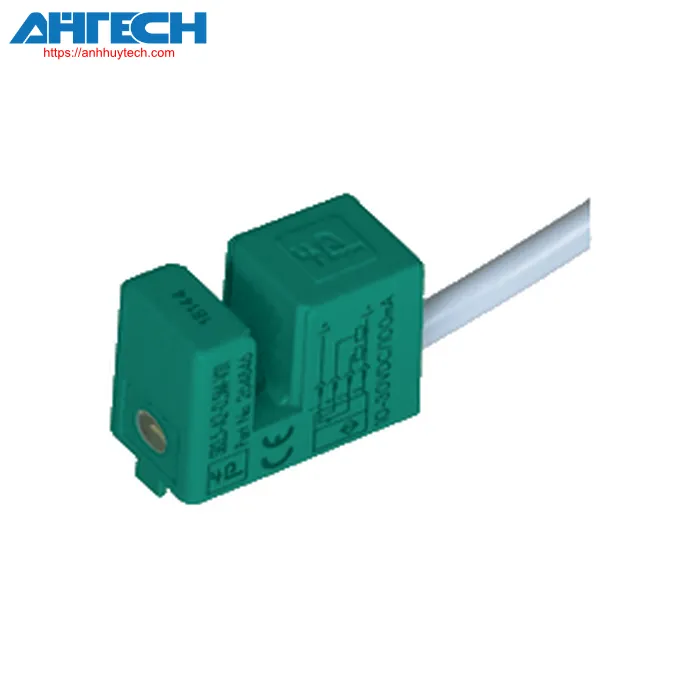

Inductive Sensor Pepperl+Fuchs SB3,5-A2-0,5M-V31

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Overall specifications
transition function		supplementary
Output configuration		PNP
Slot width		3.5 mm
Lateral immersion depth		5 ... 7 mm
Output configuration		DC
Output configuration		3-wire
Rated specifications
Operational voltage		10 ... 30 V DC
commutation frequency		0 ... 3000 Hz
Deadband		0.1 ... 0.4 mm
Polarity reversal protection		reverse polarity safeguarded
Overcurrent protection		pulsing
voltage loss		= 2 V
Operational current		0 ... 100 mA
No-load input current		= 15 mA
State indication for switching		LED
Adherence to standards and directives
Compliance with standards
	Standards	EN IEC 60947-5-2
Certifications and approvals
UL certification		cULus Certified, Standard Use
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-25 ... 85 °C (-13 ... 185 °F)
Mechanical characteristics
Linkage method		permanent cable with plug
Housing material		Crastin (PBTB)
Protection等级		IP67
Connector device
	Threading process	M8 x 1
	Fastening torque	0.4 Nm
	Pin count	4
Cable
	Cable thickness	3 mm + 0.3 mm
	Curvature radius	> 10 x cable diameter
	Material	PVC
	Color	grey
	Core count	4
	cross section of the core	0.14 mm²
	Length	0.5 m
Mass		24 g
Measurements
	Height	15 mm
	Width	10 mm
	Length	19 mm
Overview information
Contents of shipment		screw M 1.7 x 10 , nut M1.7
