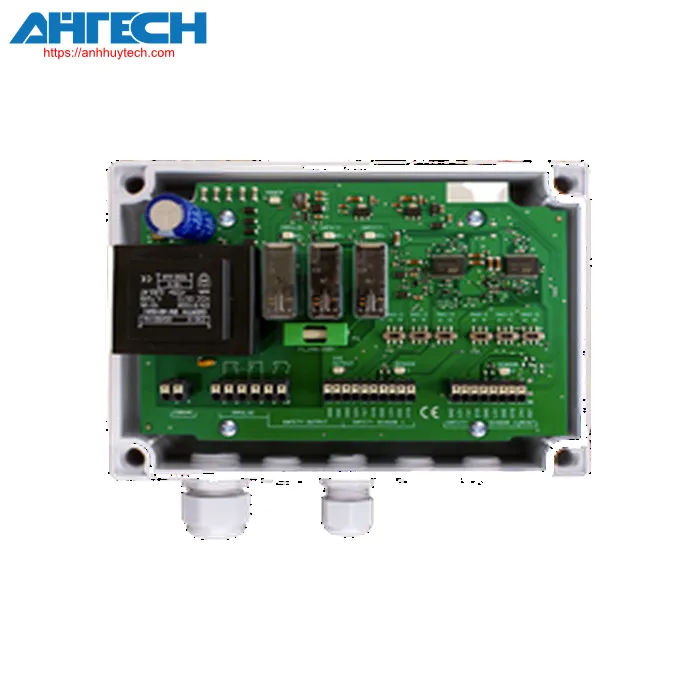

Photoelectric Sensor Pepperl+Fuchs 7230

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Item Specification
Safety regulation module

Overall specifications
Marking		CE
Indicators/operation controls
Operational status indicator		LED green: power activated
operation indicator		LED red: illuminates when the sensor is activated LED green: illuminates when the safety relay is engaged Yellow indicator LED: indicates that the safety relay is interrupted
Electrical parameters
Operational voltage		230 V AC ± 10 %
Energy usage		max. 6 VA
Output
Output configuration		relay, Non-contact
Switching voltage level		250 V AC / 50 V DC
Switching capacity		max. 1.25 mA
Energized/De-energized time delay		typ. 500 ms
reaction time		= 20 ms
Compliance
Safety functionality		ISO 13849-1 , Cat. 3 PL d
Product specification		EN 61000-6-2, EN 61000-6-3
Environmental conditions
Ambient temperature		-25 ... 60 °C (-13 ... 140 °F)
Ambient storage temperature		-25 ... 65 °C (-13 ... 149 °F)
Mechanical characteristics
Protection等级		IP66 in compliance with EN 60529
Linkage		screw terminals, conductor cross section 2 x 1 mm²
Material
	Housing	PC (polycarbonate)
Mass		900 g
Measurements
	Height	130 mm
	Width	180 mm
	Depth	62.5 mm
