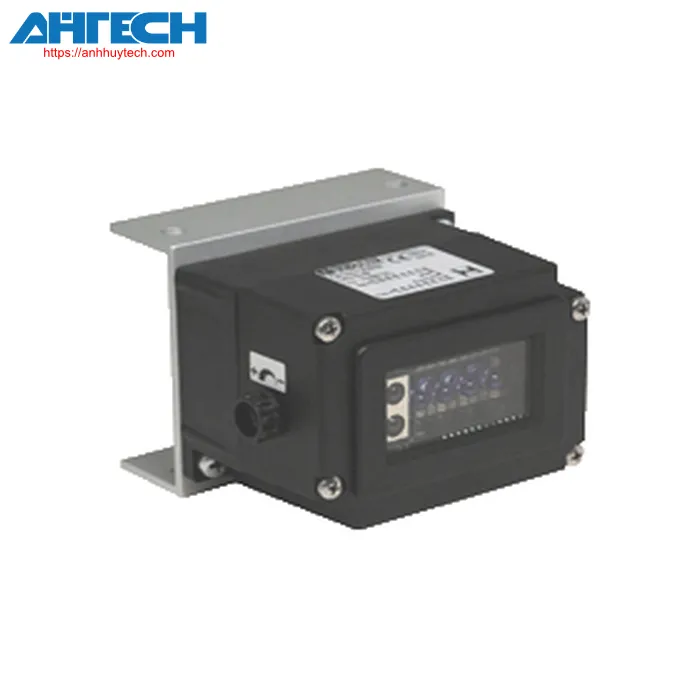

Photoelectric Sensor DAD15-8P-R-2388

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of DAD15-8P-R-2388

Classifications

Item Specification
Optical data connector

Overall specifications
Operational sensing range		0 ... 1500 mm
detection range threshold		2500 mm
illumination source		IRED
Illumination type		modulated infrared light
Size of the illumination spot		approx. 1000 mm at 1.5 m
angle of opening		± 20 °
Ambient light threshold		5000 Lux
Duration of cycle		35 ms
Parameters related to functional safety
MTTF_d		200 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		LED green
Data transfer indicator		Inputs: 8 green LEDs Outputs: 8 red LEDs
control components		Sensitivity calibration
control components		Operation mode switch 4: Response when beam is interrupted Switches 1+2: Identifier
Electrical parameters
Operational voltage		10 ... 60 V DC
No-load input current		40 mA
Data acquisition suppression		Activate input emitter shutdown
Data transmission rate		225 Bit/s
Connection point
Type of interface		8-bit parallel, two-way 10 inputs, PNP; 10 outputs, PNP
Output
Switching voltage level		max. 60 V DC
Switching capacity		maximum 200 mA per channel, protected against short circuits, total maximum of 800 mA
Compliance
Product specification		EN 60947-5-2
Certifications and approvals
EAC compliance		TR CU 020/2011
Certifications		CE
Environmental conditions
Ambient temperature		-20 ... 60 °C (-4 ... 140 °F)
Ambient storage temperature		-20 ... 75 °C (-4 ... 167 °F)
Mechanical characteristics
Protection等级		IP67
Linkage		2 M16 cable glands, tension spring connectors located in the terminal chamber
Material
	Housing	Terluran^®, in black color
	optical surface	glass
Mass		170 g
Measurements
	Width	53 mm
	Depth	56 mm
	Length	76 mm
