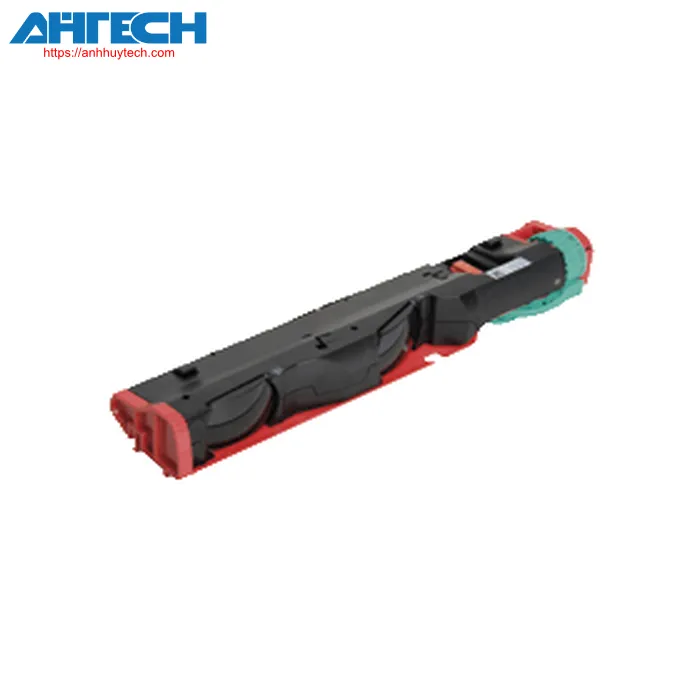

Photoelectric Sensor Pepperl+Fuchs DoorScan-T

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Item Specification
sensing unit for replacement/extension designed for installation in the DoorScan^® and TopScan sensor profile, emitter module

Overall specifications
Minimum detection range		0 ... 1500 mm
Maximum detection range		0 ... 3500 mm
illumination source		IRED
Illumination type		modulated infrared light
Black-white contrast (6 %/90 %)		< 2 % at 2000 mm sensor range
Operation mode		Background assessment
Size of the illumination spot		8 cm at a sensor range of 2000 mm
Parameters related to functional safety
Safety Integrity Level (SIL)		SIL 2
Performance level (PL)		PL d
Category		Cat. 2
MTTF_d		864 a
task duration (T_M)		20 a
Diagnostic Range (DC)		90 %
Electrical parameters
No-load input current		30 mA
Compliance
Safety functionality		ISO 13849-1 ; EN 61508 part1-4
Product specification		EN 12978
Certifications and approvals
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-30 ... 60 °C (-22 ... 140 °F)
Mechanical characteristics
mounting height		max. 3500 mm
Protection等级		IP54 (upon installation)
Material
	optical surface	PC (PC (polycarbonate))
Mass		approx. 55 g
Measurements
	Height	30 mm
	Depth	35 mm
	Length	171 mm
