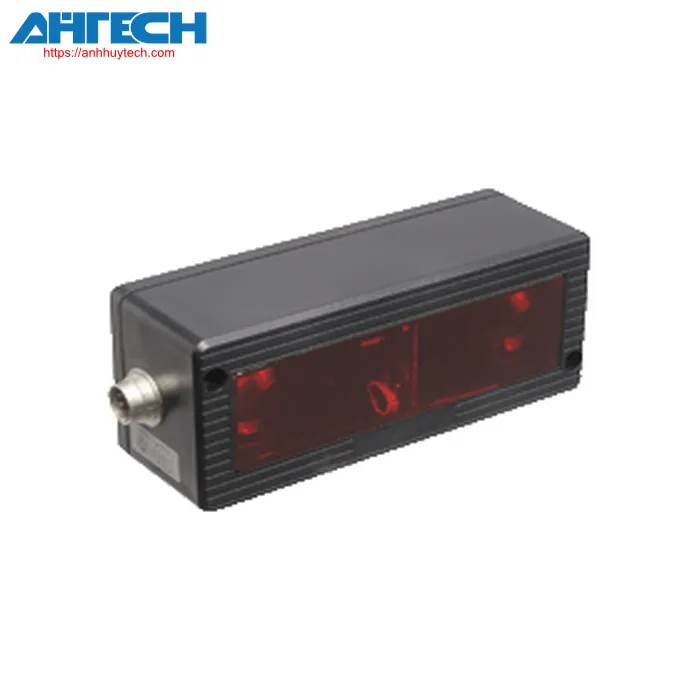

Photoelectric Sensor Pepperl+Fuchs FLT-8-H-2800-300/120a

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Item Specification
Area scanner featuring an extensive detection range for identifying individuals and objects

Overall specifications
Detection area		300 mm x 500 mm at a sensor range of 2000 mm
Minimum detection range		100 ... 1200 mm
Maximum detection range		100 ... 2800 mm
illumination source		4 x IRED
Illumination type		modulated infrared light
Illumination point depiction		43 mm x 43 mm at 2000 mm
Marking		CE
Operation mode		Background elimination
Parameters related to functional safety
MTTF_d		470 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
operation indicator		LED red
control components		detection range adjuster
Electrical parameters
Operational voltage		15 ... 48 V DC
No-load input current		100 mA
Energy usage		2.5 W
Output
Type of switch		light/dark on
Output signal		2 PNP, supplementary, short-circuit protected, open collectors
Switching voltage level		48 V DC
Switching capacity		200 mA
reaction time		100 ms
delay in a de-energized state		200 ms
Adherence to standards and directives
Compliance with standards
	Product specification	IEC 60947-5-2
	Generated interference	EN 61000-6-3
	Standards	EN 61000-6-2 excluding EN 61000-4-5, EN 61000-4-11
Environmental conditions
Ambient temperature		-20 ... 60 °C (-4 ... 140 °F)
Ambient storage temperature		-20 ... 75 °C (-4 ... 167 °F)
Mechanical characteristics
mounting height		max. 2800 mm
Protection等级		IP65
Linkage		connector, Binder series 581, 5-terminal
Material
	Housing	Makrolon GV30 material in black color
	optical surface	Glass, red
Mass		320 g
Measurements
	Height	64 mm
	Width	150 mm
	Depth	52 mm
Overview information
Contents of shipment		2 m connection cable
