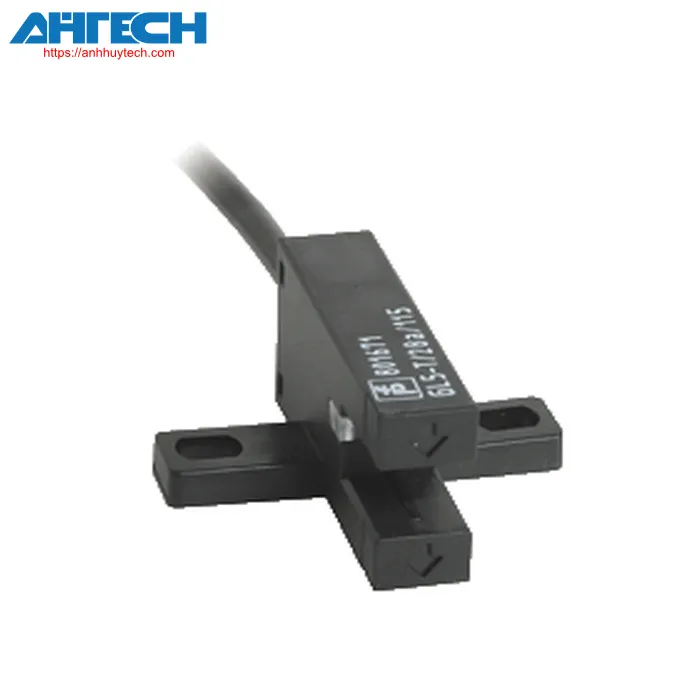

Photoelectric Sensor Pepperl+Fuchs GL5-T/43a/115e
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of GL5-T/43a/115e
| Item Specification | ||
|---|---|---|
| Miniature photoelectric slot sensor for detecting small components, T configuration, fork width of 5 mm, utilizing infrared light, PNP outputs, permanent cable | ||
| Overall specifications | ||
|---|---|---|
| illumination source | IRED | |
| Illumination type | Infrared, continuous emission, 940 nm | |
| Target dimensions | 0.8 x 1.8 mm | |
| Slot width | 5 mm | |
| Slot depth | 8.5 mm | |
| Ambient light threshold | 1000 Lux | |
| Parameters related to functional safety | ||
| MTTFd | 3760 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Indicators/operation controls | ||
| operation indicator | red LED activates upon detection of the light beam | |
| Electrical parameters | ||
| Operational voltage | 5 ... 24 V DC , class 2 | |
| No-load input current | max. 20 mA | |
| Delay time prior to availability | < 2 ms | |
| Output | ||
| Type of switch | light/dark on | |
| Output signal | 2 PNP supplementary, safeguarded against overvoltage | |
| Switching voltage level | max. 30 V DC | |
| Switching capacity | max. 50 mA , resistive load | |
| voltage loss | max. 0.2 V at 10 mA max. 0.6 V at 50 mA | |
| commutation frequency | max. 5 kHz | |
| reaction time | 40 µs light beam remains uninterrupted 80 µs Light beam interruption |
|
| Repeatability accuracy | 0.03 mm | |
| Adherence to standards and directives | ||
| Compliance with directives | ||
| EMC Regulation 2004/108/EC | EN 60947-5-2 | |
| Compliance with standards | ||
| Standards | UL 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | cULus certified, Class 2 power supply | |
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 55 °C (-13 ... 131 °F) | |
| Ambient storage temperature | -30 ... 80 °C (-22 ... 176 °F) | |
| Contamination level | 2 | |
| Mechanical characteristics | ||
| Protection等级 | IP50 | |
| Linkage | cable with a 4-pin Molex coupling | |
| Material | ||
| Housing | PBT | |
| Cable | ||
| Length | 1.4 m | |
| Mass | approx. 25 g | |
| Fastening torque for securing screws | 0.6 Nm | |
| Measurements | ||
| Height | 13.4 mm | |
| Width | 26 mm | |
| Length | 26.2 mm | |
| Cable duration | 1.4 m | |
Download Specification for GL5-T/43a/115e
