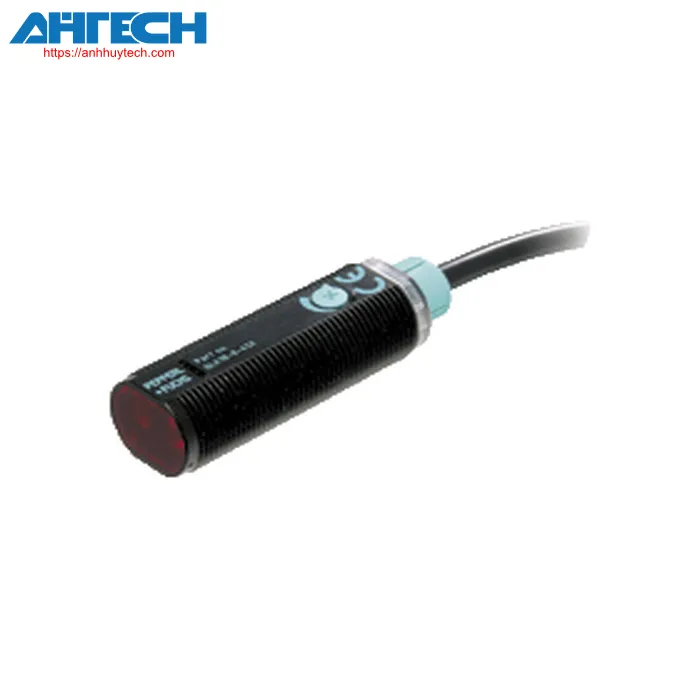

Photoelectric Sensor GLK18-8-200/59/115/161

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of GLK18-8-200/59/115/161

Classifications

Item Specification
Diffuse reflection sensor with M18 threaded housing design, made of plastic, featuring a front optical face, providing a detection range of 200 mm, utilizing red light, dark on mode, AC/DC version, NPN-FET output, and equipped with a permanent cable

Overall specifications
Detection distance		20 ... 200 mm adjustable
Maximum detection range		0 ... 200 mm
Reference point		100 mm x 100 mm Kodak white
illumination source		LED
Illumination type		modulated red light in the visible spectrum , 640 nm
Size of the illumination spot		approx. 15 mm at 200 mm
angle of opening		approx. 2 °
optical surface		frontal
Ambient light threshold		30000 Lux; in accordance with EN 60947-5-2:2007
Deadband		< 15 %
Included accessories		mounting aids
Indicators/operation controls
Operational status indicator		Green LED, continuously illuminated Power on
operation indicator		Yellow indicator LED: illuminates when an object is detected; blinks when the functioning reserve is insufficient
control components		Sensitivity calibration
Electrical parameters
Operational voltage		20 ... 250 V AC/DC
No-load input current		< 2.5 mA
Output
Type of switch		dark-on
Output signal		N-channel MOSFET with short circuit protection
Switching voltage level		max. 250 V AC/DC
Switching capacity		max. 200 mA
voltage loss		= 3.5 V AC/DC
commutation frequency		50 Hz
reaction time		= 10 ms
Compliance
Product specification		EN 60947-5-2
Adherence to standards and directives
Compliance with standards
	Standards	UL 508
Certifications and approvals
Ingress protection rating		II, rated insulation voltage = 250 V AC with pollution degree 1-2 according to IEC 60664-1
UL certification		cULus Certified, Type 1 housing For overcurrent protection, connect a fuse with a maximum rated current of 3 A 250 V AC/DC
CCC certification		Approved by China Compulsory Certification (CCC)
Certifications		CE
Environmental conditions
Ambient temperature		-20 ... 60 °C (-4 ... 140 °F)
Ambient storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级		IP67
Linkage		2 m, 3 x 0.34 mm², PVC cable
Material
	Housing	PC-PBT
	optical surface	PMMA
Mass		approx. 100 g
Measurements
	Length	56 mm
	Diameter	18 mm
	Thread dimension	M18
