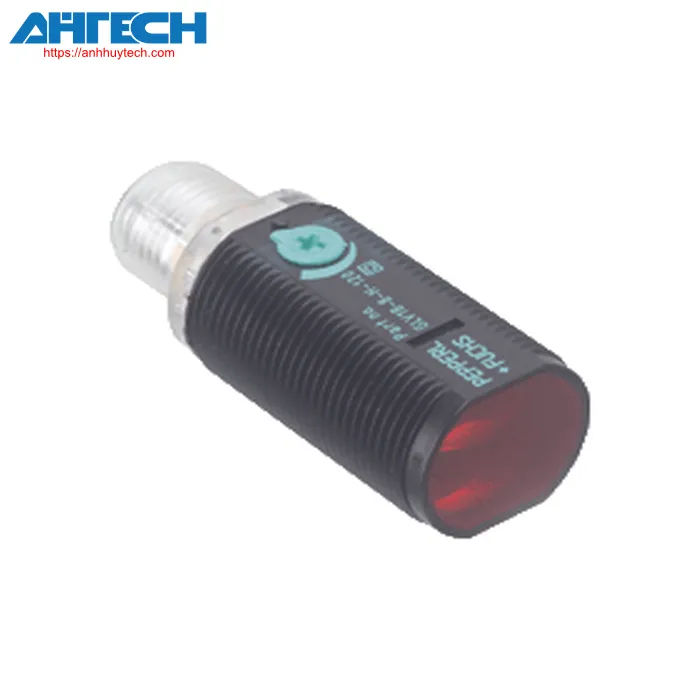

Photoelectric Sensor GLV18-8-H-120/25/102/159
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of GLV18-8-H-120/25/102/159
| Item Specification | ||
|---|---|---|
| Triangulation sensor featuring background suppression, designed with an M18 threaded housing, made of plastic, with a front optical face, detection range of 120 mm, red light, light ON mode, DC version, NPN output, and M12 plug | ||
| Overall specifications | ||
|---|---|---|
| Detection distance | 10 ... 120 mm | |
| Minimum detection range | 10 ... 40 mm | |
| Maximum detection range | 15 ... 120 mm | |
| modification range | 40 ... 120 mm | |
| Reference point | 100 mm x 100 mm Kodak white | |
| illumination source | LED | |
| Illumination type | modulated red light in the visible spectrum , 640 nm | |
| Black-white contrast (6 %/90 %) | < 6 % | |
| Size of the illumination spot | approximately 6 mm at a detection range of 120 mm | |
| angle of opening | approx. 2 ° | |
| optical surface | frontal | |
| Ambient light threshold | 30000 Lux | |
| Deadband | < 2 % | |
| Parameters related to functional safety | ||
| MTTFd | 1340 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Indicators/operation controls | ||
| Operational status indicator | Green LED, continuously illuminated Power on | |
| operation indicator | Yellow indicator LED: activates when an object is sensed | |
| control components | detection range adjuster | |
| Electrical parameters | ||
| Operational voltage | 10 ... 30 V DC | |
| No-load input current | < 15 mA | |
| Output | ||
| Type of switch | light-on | |
| Output signal | 1 NPN, short-circuit protected open collector | |
| Switching voltage level | max. 30 V DC | |
| Switching capacity | max. 100 mA | |
| voltage loss | = 1.5 V DC | |
| commutation frequency | 500 Hz | |
| reaction time | = 1 ms | |
| Compliance | ||
| Product specification | EN 60947-5-2 | |
| Certifications and approvals | ||
| Ingress protection rating | II, Nominal insulation voltage = 50 V AC with pollution degree 1-2 according to IEC 60664-1 | |
| UL certification | cULus approved, Class 2 power supply | |
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 60 °C (-13 ... 140 °F) | |
| Ambient storage temperature | -30 ... 70 °C (-22 ... 158 °F) | |
| Mechanical characteristics | ||
| Protection等级 | IP67 | |
| Linkage | 3-pin, M12 x 1 connector | |
| Material | ||
| Housing | PC | |
| optical surface | PMMA | |
| Connector device | plastic | |
| Mass | approx. 10 g | |
| Measurements | ||
| Length | 43.9 mm | |
| Diameter | 18 mm | |
| Thread dimension | M18 | |
