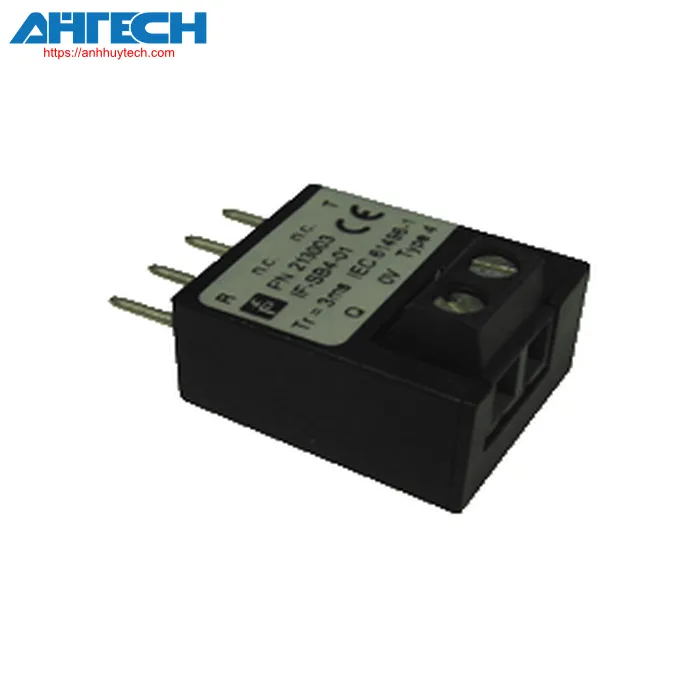

Photoelectric Sensor Pepperl+Fuchs IF-SB4-01

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Item Specification
Connection point for SafeBox SB4 modules 4CP and 4C

Parameters related to functional safety
Safety Integrity Level (SIL)		SIL 3
Performance level (PL)		PL e
Category		Cat. 4
MTTF_d		100 a
task duration (T_M)		20 a
PFH_d		0.62 E-9
Type		4
Input
Input type		PNP OSSD outputs from photoelectric safety devices
Actuation voltage		ON: 24 V DC + 20 %/- 30 %; OFF: < 1 V
Trigger current		max. 15 mA
Output
Output signal		on SB4 modules 4CP or 4C
Switching capacity		min. 7.5 mA
reaction time		3 ms
Compliance
Safety functionality		ISO 13849-1
Product specification		EN 61496-1
Certifications and approvals
CE compliance		CE
TÜV certification		TÜV SÜD
NRTL certification		cNRTLus
Environmental conditions
Ambient temperature		0 ... 50 °C (32 ... 122 °F)
Ambient storage temperature		-20 ... 70 °C (-4 ... 158 °F)
Mechanical characteristics
Protection等级		IP20
Linkage		Terminal screws, cable cross-section 0.2 ... 1.5 mm²
Material
	Housing	ABS
Mass		approx. 10 g
Measurements
	Height	15.3 mm
	Width	20 mm
	Depth	29.2 mm
Overview information
Purchase details		For the connection, two IF-SB4-01 are always necessary
