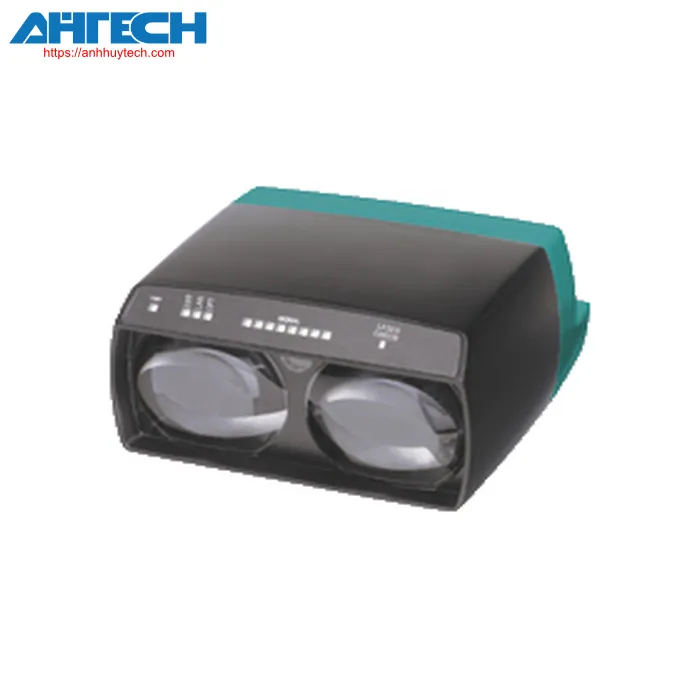

Photoelectric Sensor Pepperl+Fuchs LS684-DA-EN-9003/F1/146

Pepperl+Fuchs Categories

Photoelectric Sensor LS684-DA-EN-9003/F1/146

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of LS684-DA-EN-9003/F1/146

Classifications

Item Specification
Optical data connector for fast Ethernet, detection range of 150 m, infrared light, data rate of 100 Mbit/s, M12 plug

Overall specifications
Operational sensing range		0 ... 150 m
detection range threshold		180 m
illumination source		laser diode
Illumination type		modulated infrared light
Laser specified ratings
	Note	INVISIBLE LASER RADIATION, AVOID DIRECT VIEWING WITH OPTICAL DEVICES
	Laser category	1M
	Wavelength	785 nm
	Beam spreading	15 mrad
	pulse duration	8 ns
	Repetition frequency	62.5 MHz
	Maximum optical output power	60 mW
Size of the illumination spot		1.5 m at a range of 100 m
angle of opening		1 °
Ambient light threshold		> 10000 Lux
Parameters related to functional safety
MTTF_d		58.6 a
task duration (T_M)		10 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Data transfer indicator		LED green: OPTO-Link Yellow indicator LED: LAN-Link LED red: ERROR
operation indicator		Signal strength (8 LED: Red, yellow, green)
Electrical parameters
Operational voltage		18 ... 30 V DC
No-load input current		200 mA
Data transmission rate		100 MBit/s (Rapid Ethernet)
Connection point
Type of interface		100 BASE-TX
Output
Stability fault indication output		1 PNP, disabled when functioning reserve is insufficient, short-circuit protected, maximum current of 200 mA
Compliance
Laser safety		EN 60825-1:2007
Certifications and approvals
UL certification		cULus Certified
FDA certification		IEC 60825-1:2007 conforms with 21 CFR 1040.10 and 1040.11, excluding deviations as stated in Laser Notice No. 50, dated June 24, 2007
Environmental conditions
Ambient temperature		-30 ... 50 °C (-22 ... 122 °F)
Ambient storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级		IP65
Material
	Housing	ABS / PC
	optical surface	plastic
Mass		700 g
Measurements
	Height	90 mm
	Width	170 mm
	Length	171 mm
