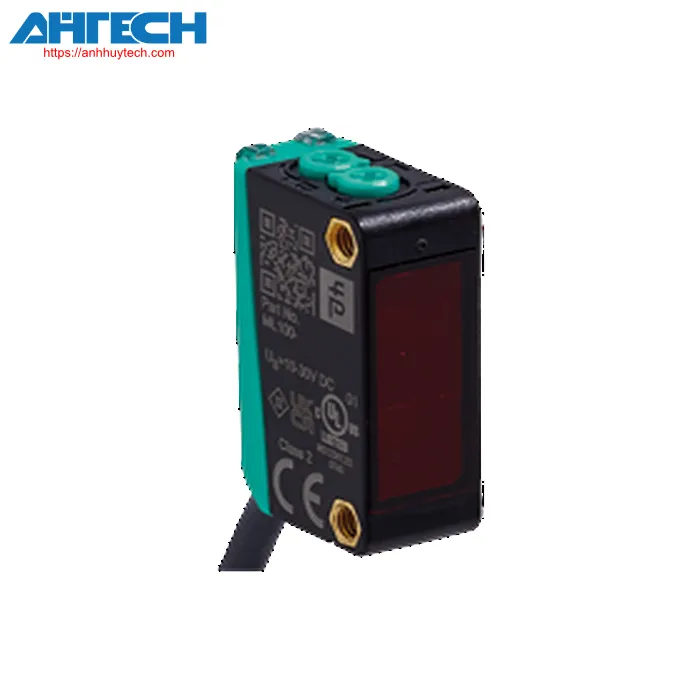

Photoelectric Sensor ML100-55-8943/120/115b-0,8M

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of ML100-55-8943/120/115b-0,8M

Classifications

Item Specification
Retroreflective detector equipped with a polarization filter, plastic enclosure, 5 m detection range, red light, Sensitivity calibration feature, light/dark ON capability, DC version, 2 PNP outputs, and a permanent cable with a right-angled M12 connector

Overall specifications
Operational sensing range		0 ... 5 m
reflector spacing		0.02 ... 5 m
detection range threshold		7 m
Reference point		H50 reflective element
illumination source		LED
Illumination type		modulated red light in the visible spectrum
polarizing filter		yes
Size of the illumination spot		approximately 500 mm at a separation of 7 m
angle of opening		approx. 4 °
optical surface		frontal
Ambient light threshold		EN 60947-5-2
Parameters related to functional safety
MTTF_d		860 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		LED green: power activated
operation indicator		Yellow indicator LED: illuminates upon detecting the light beam; flashes when functioning reserve is insufficient; OFF when the light beam is obstructed
control components		Sensitivity calibration
control components		Light-on/dark-on toggle switch
Electrical parameters
Operational voltage		10 ... 30 V DC
Ripple		max. 10 %
No-load input current		< 20 mA
Output
Type of switch		The sensor's switching type is configurable. The factory setting is: Q - Pin4: PNP normally closed / light activation / Q - Pin2: PNP normally open / dark activation
Output signal		2 PNP outputs, supplementary, short-circuit protected, reverse polarity safeguarded, open collector
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA, resistive load
voltage loss		= 1.5 V DC
commutation frequency		1000 Hz
reaction time		0.5 ms
Compliance
Product specification		EN 60947-5-2
Certifications and approvals
UL certification		cULus approved, Class 2 power supply or listed Power Supply featuring a limited voltage output with (possibly integrated) fuse (max. 3.3 A per UL248), Type 1 enclosure
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-30 ... 60 °C (-22 ... 140 °F)
Ambient storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级		IP67
Linkage		800 mm permanent cable featuring a 4-pin, right-angled, M12 x 1 connector
Material
	Housing	PC (PC (polycarbonate))
	optical surface	PMMA
Mass		approx. 30 g
Fastening torque for securing screws		0.6 Nm
Measurements
	Height	31 mm
	Width	11 mm
	Depth	20 mm
Cable duration		0.8 m
