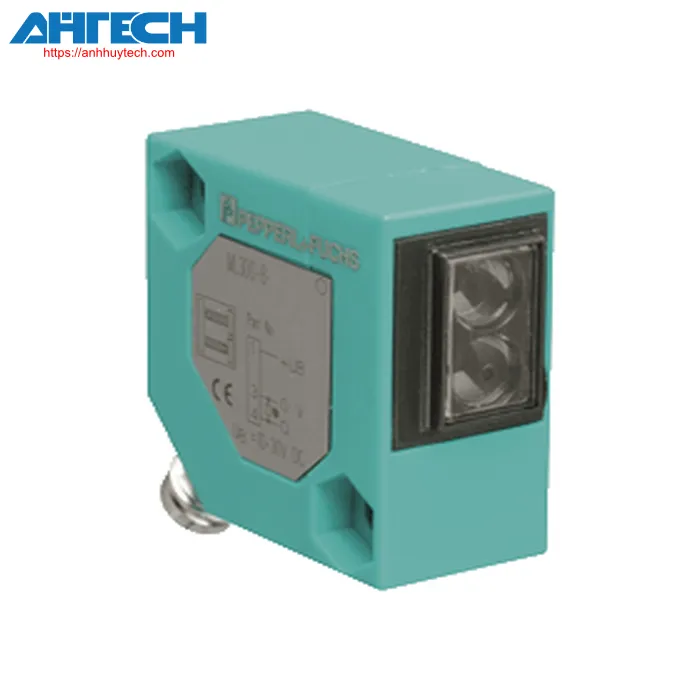

Photoelectric Sensor Pepperl+Fuchs ML300-8-1200-IR/25/95/120

Pepperl+Fuchs Categories

Photoelectric Sensor ML300-8-1200-IR/25/95/120

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of ML300-8-1200-IR/25/95/120

Classifications

Item Specification
Diffuse reflection sensor

Overall specifications
Detection distance		0 ... 1200 mm, adjustable range
modification range		250 ... 1200 mm
Reference point		typical white 200 mm x 200 mm
illumination source		IRED
Illumination type		modulated infrared light at 880 nm
Size of the illumination spot		approx. 160 mm at a distance of 1200 mm
angle of opening		approx. 8 °
Ambient light threshold
	constant illumination	10000 Lux
	Modulated illumination	5000 Lux
Included accessories		mounting bracket OMH-ML300-01
Indicators/operation controls
operation indicator		Yellow indicator LED: illuminates when the output is engaged LED green: Adequate functioning surplus
control components		detection range adjuster
Electrical parameters
Operational voltage		10 ... 30 V DC
Ripple		max. 20 %
No-load input current		max. 20 mA
Output
Type of switch		light active / dark active
Output signal		2 PNP outputs, supplementary, short-circuit protected, reverse polarity safeguarded, open collector
Switching voltage level		max. 30 V DC
Switching capacity		max. 0.1 A
voltage loss		= 2 V DC
commutation frequency		1000 Hz
reaction time		0.5 ms
Compliance
Product specification		EN 60947-5-2
Adherence to standards and directives
Compliance with standards
	Resistance to shock and impact	EN 60947-5-7 30 g, 11 ms, all directions
	vibration durability	EN 60947-5-7, 10-55 Hz/1.5 mm displacement, all axes
Certifications and approvals
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-25 ... 55 °C (-13 ... 131 °F)
Mechanical characteristics
Protection等级		IP67
Linkage		M8 x 1 socket, 4-pin
Material
	Housing	PBT
	optical surface	glass panel
	Connector device	metal
Mass		18 g
Measurements
	Height	30 mm
	Width	30 mm
	Depth	15 mm
