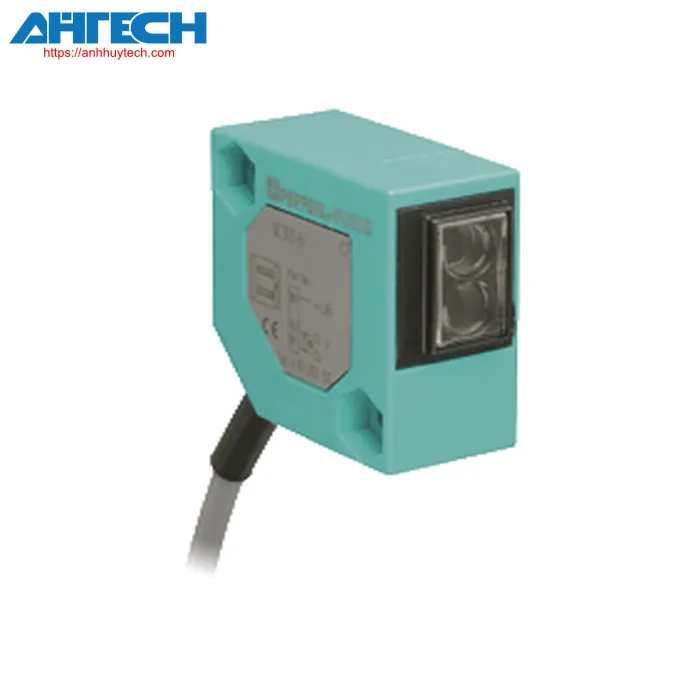

Photoelectric Sensor Pepperl+Fuchs ML300-8-600-RT/59/103/115
Pepperl+Fuchs Categories
Photoelectric Sensor ML300-8-600-RT/59/103/115
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of ML300-8-600-RT/59/103/115
| Item Specification | ||
|---|---|---|
| Diffuse reflection sensor with a compact design, adjustable detection range of 600 mm, red light, dark-on mode, PNP output, and permanent cable | ||
| Overall specifications | ||
|---|---|---|
| Detection distance | 0 ... 600 mm, modifiable | |
| modification range | 150 ... 600 mm | |
| Reference point | typical white 200 mm x 200 mm | |
| illumination source | LED | |
| Illumination type | modulated red light in the visible spectrum , 660 nm | |
| Size of the illumination spot | approximately 130 mm at a range of 600 mm | |
| angle of opening | approx. 13 ° | |
| Ambient light threshold | ||
| constant illumination | 10000 Lux | |
| Modulated illumination | 5000 Lux | |
| Indicators/operation controls | ||
| operation indicator | Yellow indicator LED: illuminates when the output is engaged LED green: Adequate functioning surplus |
|
| control components | detection range adjuster | |
| Electrical parameters | ||
| Operational voltage | 10 ... 30 V DC | |
| Ripple | max. 10 % | |
| No-load input current | max. 30 mA | |
| Output | ||
| Type of switch | dark-on | |
| Output signal | 1 PNP output, safeguarded against short circuits, protected against reverse polarity, open collector | |
| Switching voltage level | max. 30 V DC | |
| Switching capacity | max. 0.1 A | |
| voltage loss | = 2 V DC | |
| commutation frequency | 1000 Hz | |
| reaction time | 0.5 ms | |
| Compliance | ||
| Product specification | EN 60947-5-2 | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Resistance to shock and impact | EN 60947-5-7 30 g, 11 ms, all directions | |
| vibration durability | EN 60947-5-7, 10-55 Hz/1.5 mm displacement, all axes | |
| Certifications and approvals | ||
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 55 °C (-13 ... 131 °F) | |
| Mechanical characteristics | ||
| Protection等级 | IP65 | |
| Linkage | 2 m permanently attached cable | |
| Material | ||
| Housing | ABS | |
| optical surface | plastic | |
| Cable | PVC | |
| Mass | 75 g | |
| Measurements | ||
| Height | 30 mm | |
| Width | 30 mm | |
| Depth | 15 mm | |
Download Specification for ML300-8-600-RT/59/103/115
Download PDF
