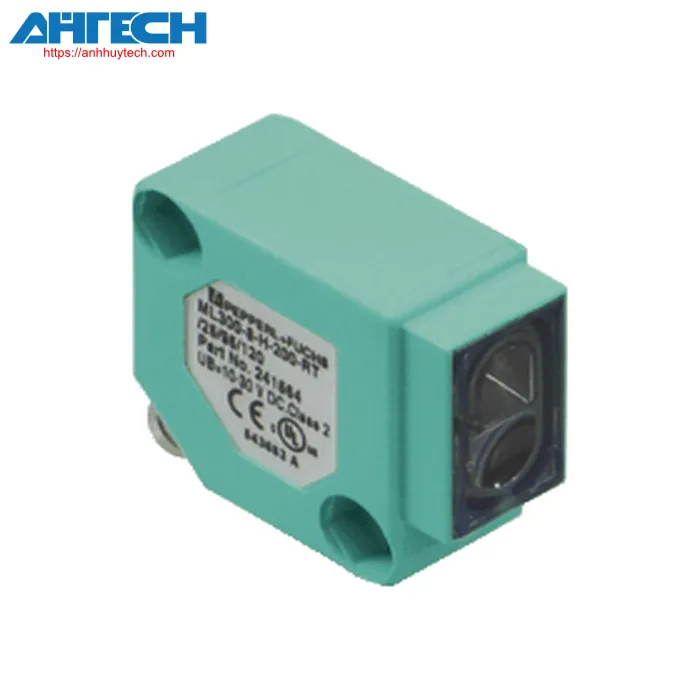

Photoelectric Sensor Pepperl+Fuchs ML300-8-H-200-RT/25/98/103

Pepperl+Fuchs Categories

Photoelectric Sensor ML300-8-H-200-RT/25/98/103

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of ML300-8-H-200-RT/25/98/103

Classifications

Item Specification
Background elimination sensor

Overall specifications
Detection distance		0 ... 200 mm, configurable
Minimum detection range		5 ... 25 mm
Maximum detection range		0 ... 200 mm
modification range		25 ... 200 mm
Reference point		typical white, 100 mm x 100 mm
illumination source		LED
Illumination type		modulated red light in the visible spectrum , 660 nm
Black-white contrast (6 %/90 %)		15 % at 200 mm
Size of the illumination spot		approx. 12 mm at a distance of 200 mm
angle of opening		approx. 3.5 °
Ambient light threshold
	constant illumination	10000 Lux
	Modulated illumination	5000 Lux
Included accessories		mounting bracket OMH-ML300-01
Indicators/operation controls
operation indicator		Yellow indicator LED: illuminates when the output is engaged LED green: illuminates upon stable object detection
control components		detection range adjuster
Electrical parameters
Operational voltage		10 ... 30 V DC
Ripple		max. 20 %
No-load input current		max. 25 mA
Output
Type of switch		light-on
Output signal		1 PNP output, safeguarded against short circuits, protected against reverse polarity, open collector
Switching voltage level		max. 30 V DC
Switching capacity		max. 0.1 A
voltage loss		= 2 V DC
commutation frequency		1000 Hz
reaction time		0.5 ms
Adherence to standards and directives
Compliance with directives
	EMC Regulation 2004/108/EC	EN 60947-5-2:2007
Compliance with standards
	Product specification	EN 60947-5-2:2007 IEC 60947-5-2:2007
	Resistance to shock and impact	EN 60947-5-7 30 g, 11 ms, all directions
	vibration durability	EN 60947-5-7, 10-55 Hz/1.5 mm displacement, all axes
Certifications and approvals
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-25 ... 55 °C (-13 ... 131 °F)
Mechanical characteristics
Protection等级		IP67
Linkage		M8 x 1 plug, 3-pin
Material
	Housing	PBT
	optical surface	glass panel
	Connector device	metal
Mass		18 g
Measurements
	Height	30 mm
	Width	30 mm
	Depth	15 mm
