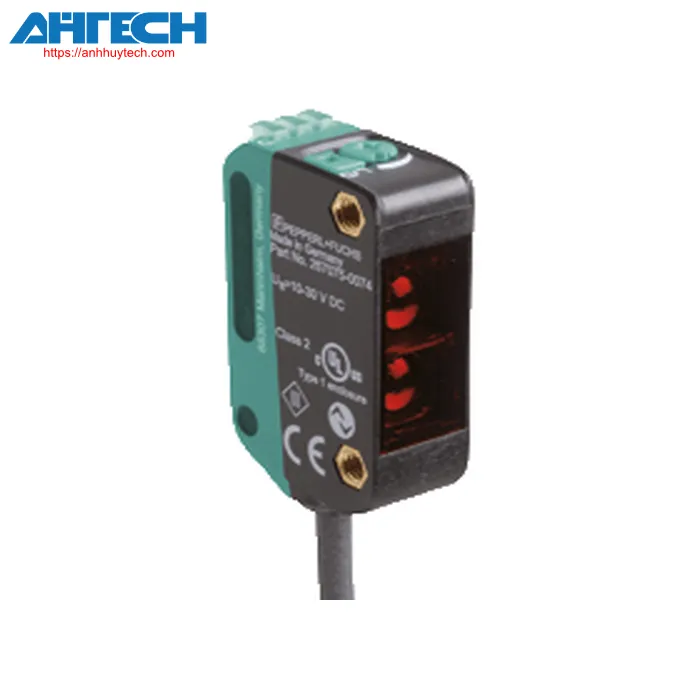

Photoelectric Sensor Pepperl+Fuchs OBD1100-R100-2EP-IO-V45-IR-Y
Pepperl+Fuchs Categories
Photoelectric Sensor OBD1100-R100-2EP-IO-V45-IR-Y
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of OBD1100-R100-2EP-IO-V45-IR-Y
| Overall specifications | ||
|---|---|---|
| Detection distance | 2 ... 1100 mm | |
| Minimum detection range | 10 ... 60 mm | |
| modification range | 60 ... 1100 mm | |
| Reference point | typical white, 100 mm x 100 mm | |
| illumination source | LED | |
| Illumination type | modulated infrared illumination 850 nm | |
| LED risk category labeling | exemption category | |
| Size of the illumination spot | approximately 100 mm at a range of 1000 mm | |
| angle of opening | 5.4 ° | |
| Ambient light threshold | EN 60947-5-2 | |
| Parameters related to functional safety | ||
| MTTFd | 724 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Indicators/operation controls | ||
| Operational status indicator | LED green: always active - power on flashing (4Hz) - short circuit condition flashing with brief interruption (1 Hz) - IO-Link mode |
|
| operation indicator | Yellow indicator LED: always active - object identified permanently off - object not recognized |
|
| control components | Light-on/dark-on toggle switch | |
| control components | detection range adjuster | |
| Electrical parameters | ||
| Operational voltage | 10 ... 30 V DC | |
| Ripple | max. 10 % | |
| No-load input current | < 25 mA at 24 V supply voltage | |
| Ingress protection rating | III | |
| Connection point | ||
| Type of interface | IO-Link ( via C/Q = BK ) | |
| IO-Link revision | 1.1 | |
| Device ID | 0x1101A0 (1114528) | |
| data transfer rate | COM2 (38.4 kBit/s) | |
| Minimum cycle time | 2.3 ms | |
| process data range | process data entry 1 Bit procedural information output 2 Bit |
|
| SIO mode support | yes | |
| Compatible master port classification | A | |
| Output | ||
| Type of switch | The sensor features an adjustable switching type. The factory default setting is: C/Q - BK: NPN normally open / light activated, PNP normally closed / dark activated, IO-Link / Q - WH: NPN failsafe closed / dark-on, PNP failsafe open / light-on |
|
| Output signal | 2 push-pull (4 in 1) outputs, equipped with short-circuit protection, reverse polarity protection, and overvoltage protection | |
| Switching voltage level | max. 30 V DC | |
| Switching capacity | max. 100 mA, resistive load | |
| Usage category | DC-12 and DC-13 | |
| voltage loss | = 1.5 V DC | |
| commutation frequency | 1000 Hz | |
| reaction time | 0.5 ms | |
| Compliance | ||
| Communication interface | IEC 61131-9 | |
| Product specification | EN 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | E87056, cULus Certified, Class 2 power supply, type rating 1 | |
| Environmental conditions | ||
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F), cable, stationary installation -25 ... 60 °C (-13 ... 140 °F), flexible cable unsuitable for conveyor chains |
|
| Ambient storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical characteristics | ||
| Protection等级 | IP67 / IP69 / IP69K | |
| Linkage | 2 m static cable + RJ45 | |
| Material | ||
| Housing | PC (PC (polycarbonate)) | |
| optical surface | PMMA | |
| Mass | approx. 10 g | |
| Measurements | ||
| Height | 37.1 mm | |
| Width | 11 mm | |
| Depth | 21.5 mm | |
| Cable duration | 2 m | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27270903 |
| ECLASS 12.0 | 27270903 |
| ECLASS 11.0 | 27270903 |
| ECLASS 10.0.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 5.1 | 27270903 |
| ETIM 9.0 | EC001821 |
| ETIM 8.0 | EC001821 |
| ETIM 7.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 5.0 | EC001821 |
| UNSPSC 12.1 | 39121528 |
Download Specification for OBD1100-R100-2EP-IO-V45-IR-Y
Download PDF
