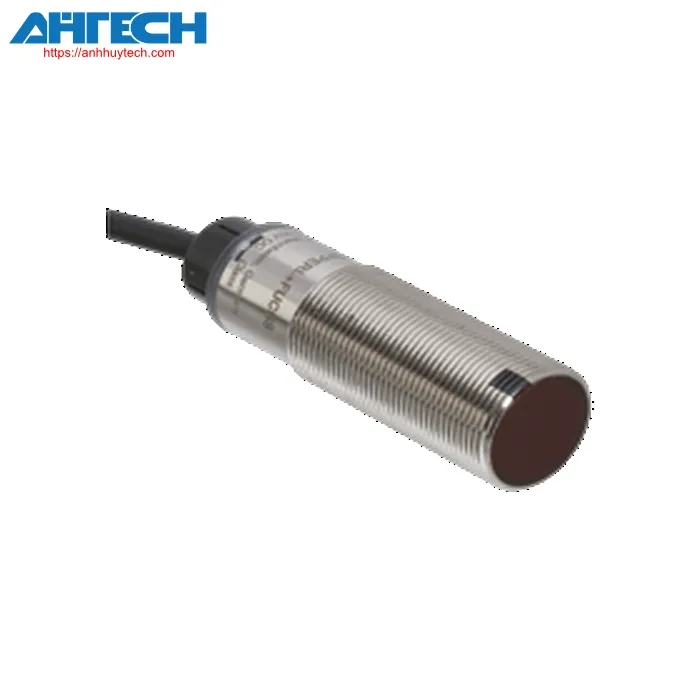

Photoelectric Sensor Pepperl+Fuchs OBD200-18GM60-E4-IR-1C
Pepperl+Fuchs Categories
Photoelectric Sensor OBD200-18GM60-E4-IR-1C
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of OBD200-18GM60-E4-IR-1C
| Overall specifications | ||
|---|---|---|
| Detection distance | 0 ... 200 mm | |
| Minimum detection range | 0 ... 30 mm | |
| Maximum detection range | 0 ... 200 mm | |
| modification range | 30 ... 200 mm | |
| Reference point | typical white 200 mm X 200 mm | |
| illumination source | IRED | |
| Illumination type | infrared | |
| Size of the illumination spot | approx. 22 mm at 200 mm | |
| angle of opening | approx. 2.6 ° | |
| optical surface | frontal | |
| Ambient light threshold | EN 60947-5-2 10000 Lux | |
| Deadband | < 15 % | |
| Parameters related to functional safety | ||
| MTTFd | 854 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Indicators/operation controls | ||
| Operational status indicator | LED green: on - activate power blinking (4 Hz) - short circuit |
|
| operation indicator | Yellow indicator LED: constantly illuminated - output engaged permanently disabled - output not active |
|
| control components | Sensitivity calibration | |
| control components | light/dark electrically switchable | |
| Electrical parameters | ||
| Operational voltage | 10 ... 30 V DC | |
| Ripple | max. 10 % | |
| No-load input current | < 25 mA | |
| Ingress protection rating | III | |
| Output | ||
| Type of switch | The sensor's switching type can be modified. The factory default configuration is: Q - Pin4: NPN output / light-on L/D-On - WH: Low-active input | |
| Output signal | 1 NPN output, protected against short circuits, safeguarded against reverse polarity, open collector | |
| Switching voltage level | max. 30 V DC | |
| Switching capacity | max. 100 mA, resistive load | |
| voltage loss | = 2 V DC | |
| commutation frequency | 500 Hz | |
| reaction time | = 1 ms | |
| Compliance | ||
| Product specification | EN 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | E87056, cULus Certified, Class 2 power supply, type rating 1 | |
| Environmental conditions | ||
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) | |
| Ambient storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical characteristics | ||
| Protection等级 | IP67 | |
| Linkage | 2 m permanently attached cable | |
| Material | ||
| Housing | brass with a nickel coating | |
| optical surface | PMMA | |
| Cable | PVC | |
| Mass | approx. 70 g | |
| Measurements | ||
| Length | 60 mm | |
| Diameter | 18 mm | |
| Thread dimension | M18 | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27270903 |
| ECLASS 12.0 | 27270903 |
| ECLASS 11.0 | 27270903 |
| ECLASS 10.0.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 5.1 | 27270903 |
| ETIM 9.0 | EC001821 |
| ETIM 8.0 | EC001821 |
| ETIM 7.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 5.0 | EC001821 |
| UNSPSC 12.1 | 39121528 |
Download Specification for OBD200-18GM60-E4-IR-1C
Download PDF
