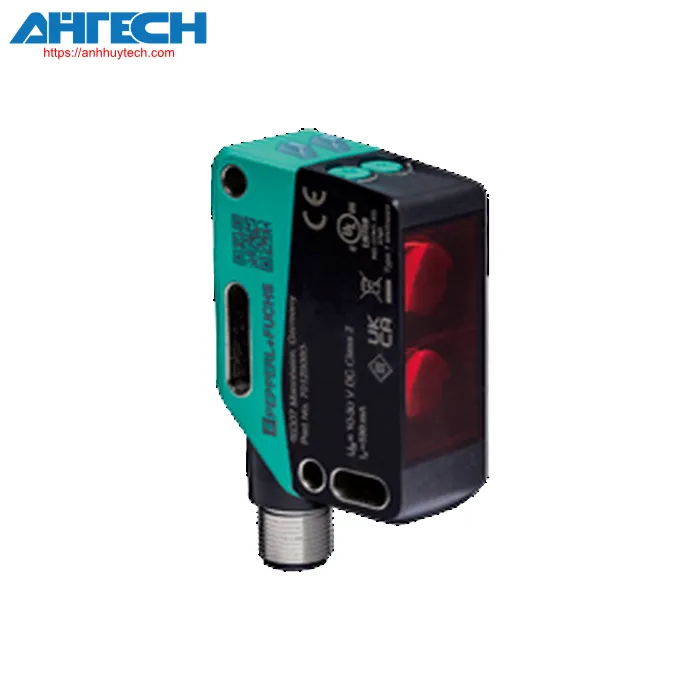

Photoelectric Sensor OBD2000-R202-2EP-V1-Y0014
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of OBD2000-R202-2EP-V1-Y0014
| Overall specifications | ||
|---|---|---|
| Detection distance | 2 ... 2000 mm | |
| Minimum detection range | 100 ... 300 mm | |
| Maximum detection range | 2 ... 2000 mm | |
| modification range | 300 ... 2000 mm | |
| Reference point | typical white, 100 mm x 100 mm | |
| illumination source | LED | |
| Illumination type | modulated red light in the visible spectrum | |
| LED risk category labeling | exemption category | |
| Size of the illumination spot | approximately 60 mm at a range of 2 m | |
| angle of opening | 2 ° | |
| Ambient light threshold | EN 60947-5-2 : 60000 Lux | |
| Parameters related to functional safety | ||
| MTTFd | 876 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Indicators/operation controls | ||
| Operational status indicator | LED green: on - activate power blinking (4 Hz) - short circuit |
|
| operation indicator | Yellow indicator LED: always active - object identified permanently off - object not recognized Flashing (8 Hz) - fault identified, the outputs retain their status |
|
| control components | Light-on/dark-on toggle switch | |
| control components | detection range adjuster | |
| Electrical parameters | ||
| Operational voltage | 10 ... 30 V DC | |
| Ripple | max. 10 % | |
| No-load input current | < 30 mA at 24 V supply voltage | |
| Ingress protection rating | III | |
| Output | ||
| Type of switch | The sensor features an adjustable switching type. The factory default setting is: Q - BK: NPN standard open / light-on, PNP standard closed / dark-on / Q - WH: NPN failsafe closed / dark-on, PNP failsafe open / light-on |
|
| Output signal | 2 push-pull (4 in 1) outputs, supplementary, short-circuit resistant, protected against reverse polarity | |
| Switching voltage level | max. 30 V DC | |
| Switching capacity | max. 100 mA, resistive load | |
| Usage category | DC-12 and DC-13 | |
| voltage loss | = 1.5 V DC | |
| commutation frequency | 1000 Hz | |
| reaction time | 0.5 ms | |
| Compliance | ||
| Product specification | EN 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | E87056, cULus Certified, Class 2 power supply, type rating 1 | |
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -30 ... 60 °C (-22 ... 140 °F) |
|
| Ambient storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical characteristics | ||
| Protection等级 | IP67 | |
| Linkage | 4-pin, M12 x 1 connector, 90° rotatable | |
| Material | ||
| Housing | PC (PC (polycarbonate)) | |
| optical surface | PMMA | |
| Mass | approx. 60 g | |
| Measurements | ||
| Height | 62 mm | |
| Width | 20 mm | |
| Depth | 42 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27270903 |
| ECLASS 12.0 | 27270903 |
| ECLASS 11.0 | 27270903 |
| ECLASS 10.0.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 5.1 | 27270903 |
| ETIM 9.0 | EC001821 |
| ETIM 8.0 | EC001821 |
| ETIM 7.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 5.0 | EC001821 |
| UNSPSC 12.1 | 39121528 |
Download Specification for OBD2000-R202-2EP-V1-Y0014
Download PDF
