Photoelectric Sensor Pepperl+Fuchs OBR5500-18GK40-E2

Pepperl+Fuchs Categories

Photoelectric Sensor Pepperl+Fuchs obr5500-18gk40-e2

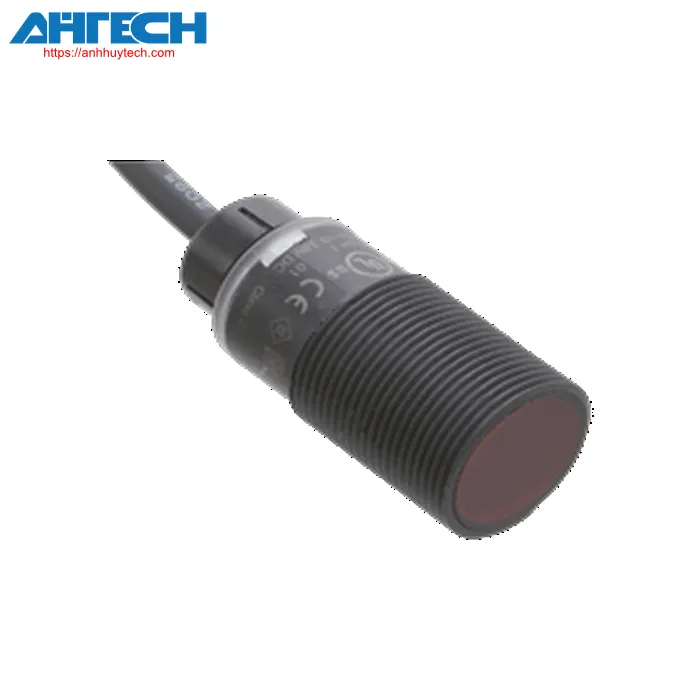

Photoelectric Sensor OBR5500-18GK40-E2

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo  Contact via Zalo Phone call  Phone call
Share on:
Description Download Accessories

Datasheet excerpt: Technical data of  OBR5500-18GK40-E2

Classifications

Item Specification
Retroreflective detector
Overall specifications
Operational sensing range0 ... 5.5 m
reflector spacing0 ... 5.5 m
detection range threshold7.8 m
Reference pointreflector C110-2
illumination sourceLED
Illumination typemodulated red light in the visible spectrum
polarizing filteryes
Size of the illumination spotapprox. 350 mm at 5.5 m
angle of openingapprox. 2.6 °
optical surfacefrontal
Ambient light thresholdEN 60947-5-2 40000 Lux
Parameters related to functional safety
MTTFd1552 a
task duration (TM)20 a
Diagnostic Range (DC)0 %
Indicators/operation controls
Operational status indicatorLED green:
on - activate power
blinking (4 Hz) - short circuit
operation indicatorYellow LED:
Constantly illuminated - unobstructed light path
Permanently off - entity detected
Flashing (4 Hz) - inadequate operational reserve
Electrical parameters
Operational voltage10 ... 30 V DC
Ripplemax. 10 %
No-load input current< 25 mA
Ingress protection ratingIII
Output
Type of switchQ - Pin4: PNP normally open / dark-activated
Output signal1 PNP output, safeguarded against short circuits, protected against reverse polarity, open collector
Switching voltage levelmax. 30 V DC
Switching capacitymax. 100 mA, resistive load
voltage loss= 1.5 V DC
commutation frequency500 Hz
reaction time= 1 ms
Compliance
Product specificationEN 60947-5-2
Certifications and approvals
UL certificationE87056, cULus Certified, Class 2 power supply, type rating 1
Environmental conditions
Ambient temperature-40 ... 60 °C (-40 ... 140 °F)
Ambient storage temperature-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级IP67
Linkage2 m permanently attached cable
Material
HousingPC (PC (polycarbonate))
optical surfacePMMA
CablePVC
Massapprox. 54 g
Measurements
Length40 mm
Diameter18 mm
Thread dimensionM18

Download Specification for OBR5500-18GK40-E2
