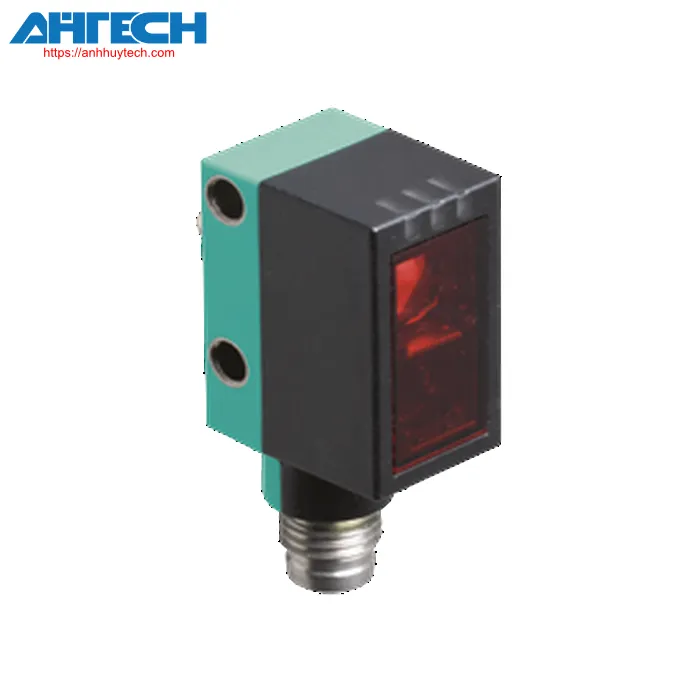

Photoelectric Sensor OBR7500-R101-P1-Y0447
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of OBR7500-R101-P1-Y0447
| Item Specification | ||
|---|---|---|
| Retroreflective detector featuring a polarization filter | ||
| Overall specifications | ||
|---|---|---|
| Operational sensing range | 0 ... 7.5 m | |
| reflector spacing | 0.03 ... 7.5 m | |
| detection range threshold | 10 m | |
| Reference point | H85-2 reflective surface | |
| illumination source | LED | |
| Illumination type | modulated red light in the visible spectrum | |
| LED risk category labeling | exemption category | |
| polarizing filter | yes | |
| Size of the illumination spot | approximately 65 mm at a range of 1 m | |
| angle of opening | 3.7 ° | |
| Ambient light threshold | EN 60947-5-2 | |
| Parameters related to functional safety | ||
| MTTFd | 724 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Indicators/operation controls | ||
| Operational status indicator | Green indicator LED: Constantly illuminated - power activated Flashing (4 Hz) - short circuit |
|
| operation indicator | Yellow LED: Constantly illuminated - unobstructed light path Permanently off - entity detected Flashing (4 Hz) - inadequate operational reserve |
|
| Electrical parameters | ||
| Operational voltage | 10 ... 30 V DC | |
| Ripple | max. 10 % | |
| No-load input current | < 25 mA at 24 V supply voltage | |
| Ingress protection rating | III | |
| Output | ||
| Type of switch | The factory configuration is: Q - Pin4: NPN normally closed / active in light, PNP normally open / active in darkness |
|
| Output signal | 1 push-pull (4 in 1) output, short-circuit protection, reverse polarity protection, overvoltage protection | |
| Switching voltage level | max. 30 V DC | |
| Switching capacity | max. 100 mA, resistive load | |
| Usage category | DC-12 and DC-13 | |
| voltage loss | = 1.5 V DC | |
| commutation frequency | 1000 Hz | |
| reaction time | 0.5 ms | |
| Compliance | ||
| Communication interface | IEC 61131-9 | |
| Product specification | EN 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | E87056, cULus Certified, Class 2 power supply, type rating 1 | |
| Environmental conditions | ||
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
|
| Ambient storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical characteristics | ||
| Protection等级 | IP67 / IP69 / IP69K | |
| Linkage | M8 x 1 plug, 3-pin | |
| Material | ||
| Housing | PC (PC (polycarbonate)) | |
| optical surface | PMMA | |
| Mass | approx. 15 g | |
| Measurements | ||
| Height | 39.5 mm | |
| Width | 13.9 mm | |
| Depth | 18.3 mm | |
| Cable duration | 0.3 m | |
