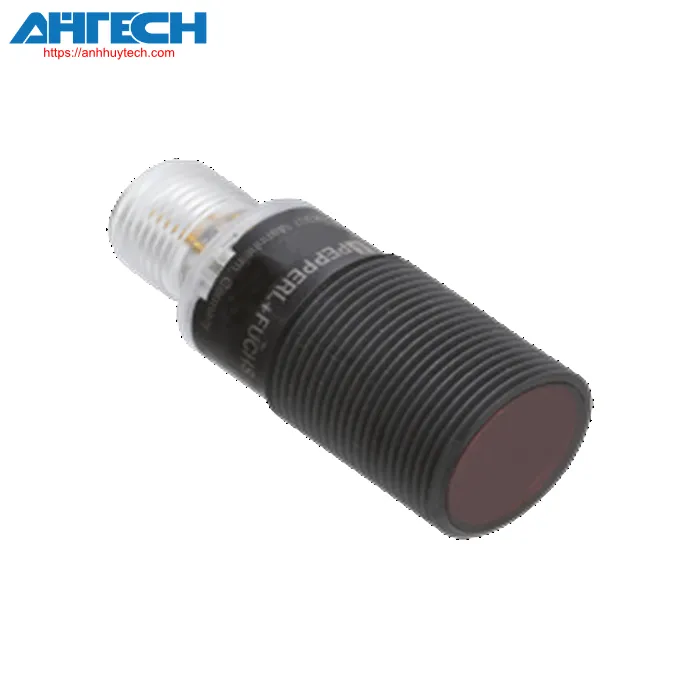

Photoelectric Sensor OBT150-18GK40-E2-V1
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of OBT150-18GK40-E2-V1
| Item Specification | ||
|---|---|---|
| Triangulation sensor featuring background elimination | ||
| Overall specifications | ||
|---|---|---|
| Detection distance | 10 ... 150 mm | |
| Minimum detection range | 10 ... 40 mm | |
| Maximum detection range | 12 ... 150 mm | |
| modification range | 40 ... 150 mm | |
| Reference point | typical white, 100 mm x 100 mm | |
| illumination source | LED | |
| Illumination type | modulated red light in the visible spectrum | |
| Black-white contrast (6 %/90 %) | < 10 % at 150 mm | |
| Size of the illumination spot | approx. 6 mm at detection range 150 mm | |
| angle of opening | approx. 2 ° | |
| optical surface | frontal | |
| Ambient light threshold | EN 60947-5-2 100000 Lux | |
| Deadband | < 2 % | |
| Parameters related to functional safety | ||
| MTTFd | 1734 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Indicators/operation controls | ||
| Operational status indicator | LED green: on - activate power blinking (4 Hz) - short circuit |
|
| operation indicator | Yellow indicator LED: always active - object identified permanently off - object not recognized |
|
| control components | Sensitivity calibration | |
| Electrical parameters | ||
| Operational voltage | 10 ... 30 V DC | |
| Ripple | max. 10 % | |
| No-load input current | < 25 mA | |
| Ingress protection rating | III | |
| Output | ||
| Type of switch | Q - Pin4: PNP normally open / illuminated light | |
| Output signal | 1 PNP output, safeguarded against short circuits, protected against reverse polarity, open collector | |
| Switching voltage level | max. 30 V DC | |
| Switching capacity | max. 100 mA, resistive load | |
| voltage loss | = 1.5 V DC | |
| commutation frequency | 500 Hz | |
| reaction time | = 1 ms | |
| Compliance | ||
| Product specification | EN 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | E87056, cULus Certified, Class 2 power supply, type rating 1 | |
| Environmental conditions | ||
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) | |
| Ambient storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical characteristics | ||
| Protection等级 | IP67 | |
| Linkage | 3-pin, M12 x 1 connector | |
| Material | ||
| Housing | PC (PC (polycarbonate)) | |
| optical surface | PMMA | |
| Connector device | plastic | |
| Mass | approx. 8 g | |
| Measurements | ||
| Length | 45.1 mm | |
| Diameter | 18 mm | |
| Thread dimension | M18 | |
