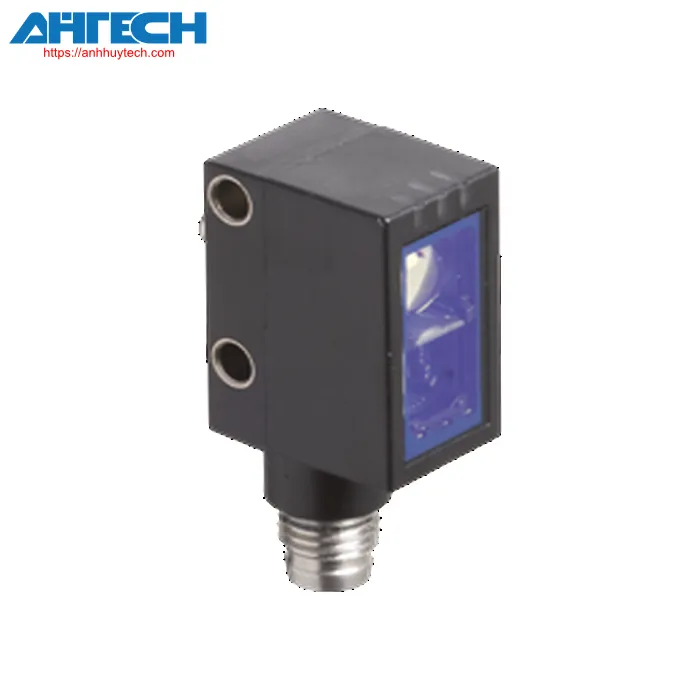

Photoelectric Sensor OBT40-R102-EP1-V31-F-Y0621

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of OBT40-R102-EP1-V31-F-Y0621

Classifications

Item Specification
Triangulation sensor featuring background elimination

Overall specifications
Detection distance		10 ... 40 mm
Maximum detection range		10 ... 50 mm
Background elimination		begins at 50 mm
Reference point		typical white, 100 mm x 100 mm
illumination source		LED
Illumination type		modulated red light in the visible spectrum
LED risk category labeling		exemption category
Black-white contrast (6 %/90 %)		approx. 1 mm
Size of the illumination spot		approx. 3 mm at 40 mm
angle of opening		approx. 5 °
Ambient light threshold		EN 60947-5-2 : 40000 Lux
Parameters related to functional safety
MTTF_d		600 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		Green indicator LED: Constantly illuminated - power activated Flashing (4 Hz) - short circuit
operation indicator		Yellow indicator LED: always active - object identified permanently off - object not recognized
Electrical parameters
Operational voltage		10 ... 30 V
Ripple		max. 10 %
No-load input current		max. 25 mA ( at 24 V )
Ingress protection rating		III
Output
Type of switch		The sensor features an adjustable switching type. The factory default setting is: Q - Pin4: NPN configuration is normally closed / dark-on, while PNP configuration is normally open / light-on L/D-On - Pin2: High-aktive input
Output signal		1 push-pull (4 in 1) output, short-circuit protection, reverse polarity protection, overvoltage protection
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA, resistive load
Usage category		DC-12 and DC-13
voltage loss		= 1.5 V DC
commutation frequency		1800 Hz
reaction time		260 µs
Compliance
Product specification		EN 60947-5-2
Certifications and approvals
UL certification		E87056, cULus Certified, Class 2 power supply, type rating 1
Environmental conditions
Ambient temperature		-40 ... 60 °C (-40 ... 140 °F)
Ambient storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级		IP67 / IP69 / IP69K
Linkage		M8 x 1 socket, 4-pin
Material
	Housing	PC (PC (polycarbonate))
	optical surface	Annealed glass
Mass		approx. 10 g
Measurements
	Height	31.9 mm
	Width	13.9 mm
	Depth	18.3 mm
