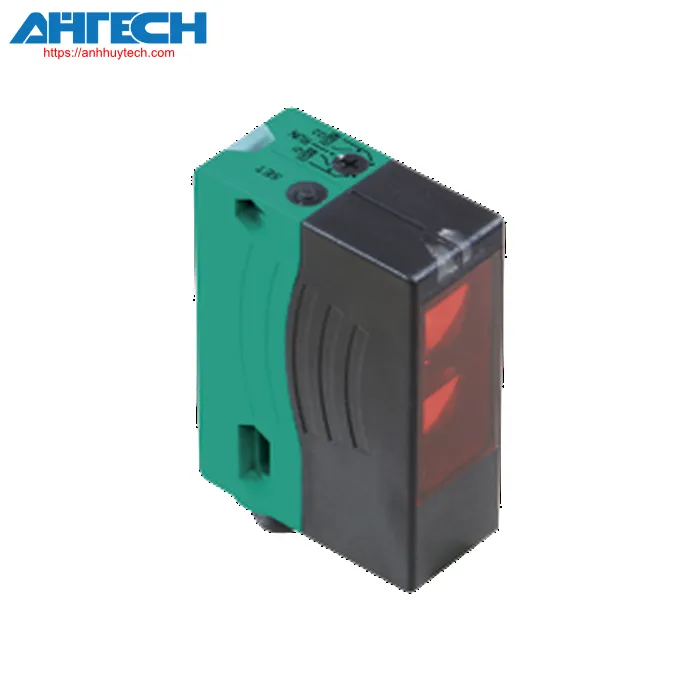

Photoelectric Sensor OMR50M-R300-IEP-V1
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of OMR50M-R300-IEP-V1
| Overall specifications | ||
|---|---|---|
| Operational sensing range | 0 ... 50 m | |
| reflector spacing | 0.2 ... 50 m | |
| Reference point | 3 x REF-H100 | |
| illumination source | LED | |
| Illumination type | modulated red light in the visible spectrum | |
| LED risk category labeling | exemption category | |
| Angular displacement | max. ± 2° | |
| Measurement technique | Pulse Ranging Technology (PRT) | |
| Size of the illumination spot | approximately 16 cm x 18 cm at a range of 10 m | |
| Ambient light threshold | 50000 Lux | |
| Accuracy | 12 bit, but > 0.5 mm | |
| Parameters related to functional safety | ||
| MTTFd | 100 a | |
| task duration (TM) | 10 a | |
| Diagnostic Range (DC) | 0 % | |
| Indicators/operation controls | ||
| Operational status indicator | LED green | |
| operation indicator | 2 yellow LEDs for status indication | |
| learning confirmation indicator | Teach-In: LED green/yellow alternating flash; 2.5 Hz Teach Error: LED green/yellow alternating flashing; 8.0 Hz |
|
| control components | 5-position rotary switch for selecting functioning modes (threshold configuration and mode selection) | |
| control components | Selector for configuring the threshold values | |
| Electrical parameters | ||
| Operational voltage | 10 ... 30 V DC | |
| Ripple | 10 % within the supply tolerance | |
| No-load input current | = 80 mA / 24 V DC | |
| Delay time prior to availability | < 0.7 s, for temperatures <-30°C adherence to the specification is required 5 mins after powering on | |
| Output | ||
| Output signal | 1 push-pull (4 in 1) output, equipped with short-circuit protection, reverse polarity protection, and overvoltage protection; 1 analog output 4 ... 20 mA, featuring short-circuit/overload protection | |
| Switching voltage level | max. 30 V DC | |
| Switching capacity | max. 100 mA | |
| Output measurement | 1 analog output 4 ... 20 mA ; Rmax = 470 O | |
| commutation frequency | 50 Hz | |
| reaction time | 5 ms | |
| Compliance | ||
| Product specification | EN 60947-5-2 | |
| Measurement precision | ||
| Repeatability accuracy | < 5 mm | |
| Certifications and approvals | ||
| UL certification | E87056, cULus Certified, Class 2 power supply, type rating 1 | |
| Environmental conditions | ||
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) | |
| Ambient storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical characteristics | ||
| Protection等级 | IP67 | |
| Linkage | 4-pin, M12 x 1 connector | |
| Material | ||
| Housing | Plastic ABS | |
| optical surface | PMMA | |
| Mass | 90 g | |
| Measurements | ||
| Height | 88 mm | |
| Width | 25.8 mm | |
| Depth | 54.3 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27270916 |
| ECLASS 12.0 | 27270916 |
| ECLASS 11.0 | 27270801 |
| ECLASS 10.0.1 | 27270801 |
| ECLASS 9.0 | 27270801 |
| ECLASS 8.0 | 27270801 |
| ECLASS 5.1 | 27270801 |
| ETIM 9.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 5.0 | EC001825 |
| UNSPSC 12.1 | 41111613 |
Download Specification for OMR50M-R300-IEP-V1
Download PDF
