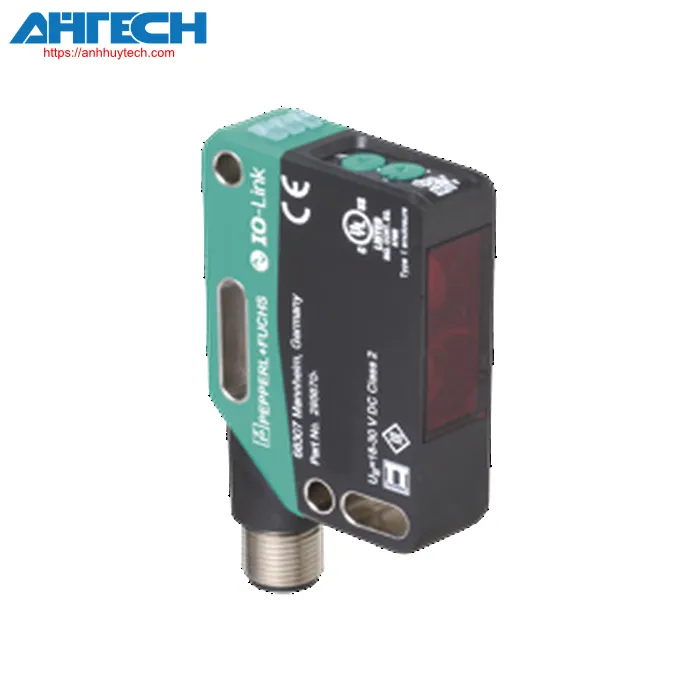

Photoelectric Sensor OMT550-R201-UEP-IO-V1

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of OMT550-R201-UEP-IO-V1

Classifications

Item Specification
Proximity sensor

Overall specifications
Measurement range		100 ... 550 mm
Reference point		typical white, 100 mm x 100 mm
illumination source		LED
Illumination type		modulated red light in the visible spectrum
LED risk category labeling		exemption category
Angular displacement		max. +/- 1.5 °
Size of the illumination spot		approximately 20 mm at a distance of 550 mm
angle of opening		2.5 °
Ambient light threshold		EN 60947-5-2 : 45000 Lux
Accuracy		0.1 mm
Parameters related to functional safety
MTTF_d		520 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		LED green: always active - power on flashing (4Hz) - short circuit condition flashing with brief interruption (1 Hz) - IO-Link mode
operation indicator		Yellow indicator LED: permanently on - output switch is active permanently off - switch output not active
control components		learning key
control components		5-position rotary switch for selecting functioning modes
Electrical parameters
Operational voltage		18 ... 30 V DC
Ripple		max. 10 %
No-load input current		< 25 mA at 24 V supply voltage
Ingress protection rating		III
Connection point
Type of interface		IO-Link ( via C/Q = pin 4 )
IO-Link revision		1.1
equipment profile		Recognition and troubleshooting intelligent sensor type 0/type 3.3
Device ID		0x111913 (1120531)
data transfer rate		COM2 (38.4 kBit/s)
Minimum cycle time		3 ms
process data range		process data entry 4 byte procedural information output 2 bits
SIO mode support		yes
Compatible master port classification		A
Output
Type of switch		The factory configuration is: C/Q - Pin4: NPN normally open, PNP normally closed, IO-Link U—Pin2: analog output 0 ... 10 V
Output signal		1 push-pull output, 1 analog output, short-circuit resistant, reverse polarity protection, surge protection
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA, resistive load
Usage category		DC-12 and DC-13
voltage loss		= 1.5 V DC
reaction time		2 ms , see table 1
Analog signal output
Output configuration		1 voltage output: 0 ... 10 V
Load resistance		> 1 kΩ voltage output; = 470 Ω current output
	restoration time	2 ms
Compliance
Communication interface		IEC 61131-9
Product specification		EN 60947-5-2
Measurement precision
Temperature variation		0.05 %/K
heating period		5 min
Repeatability accuracy		= 1 % , see table 1
Non-linearity error		0.75 %
Certifications and approvals
UL certification		E87056, cULus Certified, Class 2 power supply, type rating 1
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		10 ... 50 °C (50 ... 122 °F)
Ambient storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级		IP67 / IP69 / IP69K
Linkage		4-pin, M12 x 1 connector, 90° rotatable
Material
	Housing	PC (PC (polycarbonate))
	optical surface	PMMA
Mass		approx. 37 g
Measurements
	Height	61.7 mm
	Width	15 mm
	Depth	41.7 mm
