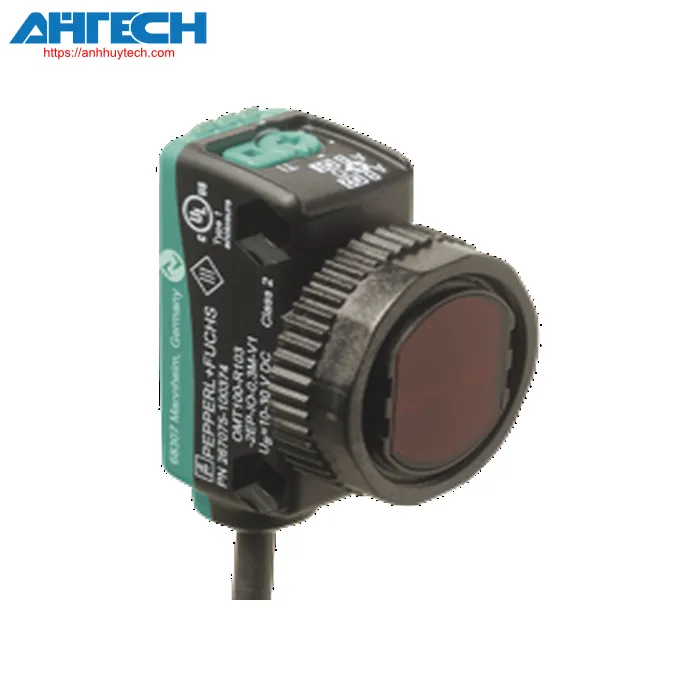

Photoelectric Sensor Pepperl+Fuchs OQT120-R103-2EP-IO-L

Pepperl+Fuchs Categories

Photoelectric Sensor OQT120-R103-2EP-IO-L

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of OQT120-R103-2EP-IO-L

Classifications

Item Specification
Measuring sensor featuring multiple switch points, compact design, background suppression, and various adjustable functioning modes, equipped with an IO-Link interface

Overall specifications
Detection distance		8 ... 120 mm
Minimum detection range		8 ... 20 mm
Maximum detection range		8 ... 120 mm
modification range		20 ... 120 mm
Reference point		typical white, 100 mm x 100 mm
illumination source		laser diode
Illumination type		modulated red light in the visible spectrum
Laser specified ratings
	Note	LASER LIGHT , DO NOT STARE INTO BEAM
	Laser category	1
	Wavelength	680 nm
	Beam spreading	> 5 mrad; d63 < 1 mm within the range of 50 mm ... 250 mm
	pulse duration	3 µs
	Repetition frequency	approx. 3 kHz
	maximum pulse energy	15.2 nJ
Black-white contrast (6 %/90 %)		< 3 % at 120 mm
Size of the illumination spot		approximately 2 mm at a distance of 120 mm
angle of opening		approx. 1 °
Ambient light threshold		EN 60947-5-2 : 30000 Lux
Parameters related to functional safety
MTTF_d		560 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		LED green: always active - power on flashing (4Hz) - short circuit condition flashing with brief interruption (1 Hz) - IO-Link mode
operation indicator		Yellow indicator LED: permanently on - output switch is active permanently off - switch output not active
control components		learning key
control components		5-position rotary switch for selecting functioning modes
Electrical parameters
Operational voltage		10 ... 30 V DC
Ripple		max. 10 %
No-load input current		< 20 mA at 24 V supply voltage
Ingress protection rating		III
Connection point
Type of interface		IO-Link ( via C/Q = BK )
IO-Link revision		1.1
equipment profile		intelligent sensor
Device ID		0x110804 (1116164)
data transfer rate		COM2 (38.4 kBit/s)
Minimum cycle time		2.3 ms
process data range		process data entry 2 Bit procedural information output 2 Bit
SIO mode support		yes
Compatible master port classification		A
Output
Type of switch		The factory configuration is: C/Q - BK: NPN normally open, PNP normally closed, IO-Link interface Q2 - WH: NPN type normally open, PNP type normally closed
Output signal		2 push-pull (4 in 1) outputs, equipped with short-circuit protection, reverse polarity protection, and overvoltage protection
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA, resistive load
Usage category		DC-12 and DC-13
voltage loss		= 1.5 V DC
commutation frequency		217 Hz
reaction time		2.3 ms
Compliance
Communication interface		IEC 61131-9
Product specification		EN 60947-5-2
Laser safety		EN 60825-1:2014
Certifications and approvals
UL certification		E87056, cULus Certified, Class 2 power supply, type rating 1
FDA certification		IEC 60825-1:2007 conforms with 21 CFR 1040.10 and 1040.11, excluding deviations as stated in Laser Notice No. 50, dated June 24, 2007
Environmental conditions
Ambient temperature		-40 ... 60 °C (-40 ... 140 °F), cable, stationary installation -25 ... 60 °C (-13 ... 140 °F), flexible cable unsuitable for conveyor chains
Ambient storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级		IP67 / IP69 / IP69K
Linkage		2 m permanently attached cable
Material
	Housing	PC (PC (polycarbonate))
	optical surface	PMMA
Mass		approx. 38 g
Measurements
	Height	36.5 mm
	Width	15 mm
	Depth	26.7 mm
Cable duration		2 m
